UL/cUL | Multiple Cable

UL/cUL Standard (America) | Automotive Cable Hook-Up Wires Multiple Cable Power Cable Power Plug


UL2095

Wire Type
Multiple-conductor cable using non-integral jacket
Application
Internal wiring of electronic equipment and appliances. Tags may indicate the following: 600V Peak for Electronic use only.
Materials/Standard
Conductor:30-16 AWG, solid or stranded. in compliance with UL758
Insulation:Semi-rigid Vinyl (PVC) insulated.
Shield:Optional.
Covering:Optional.
Braid:Optional, provided over Jacket.
Uniform thickness of wire to ensure easy stripping and cutting.
Passed UL VW-1 flame test.
Temperature Rate: 80°

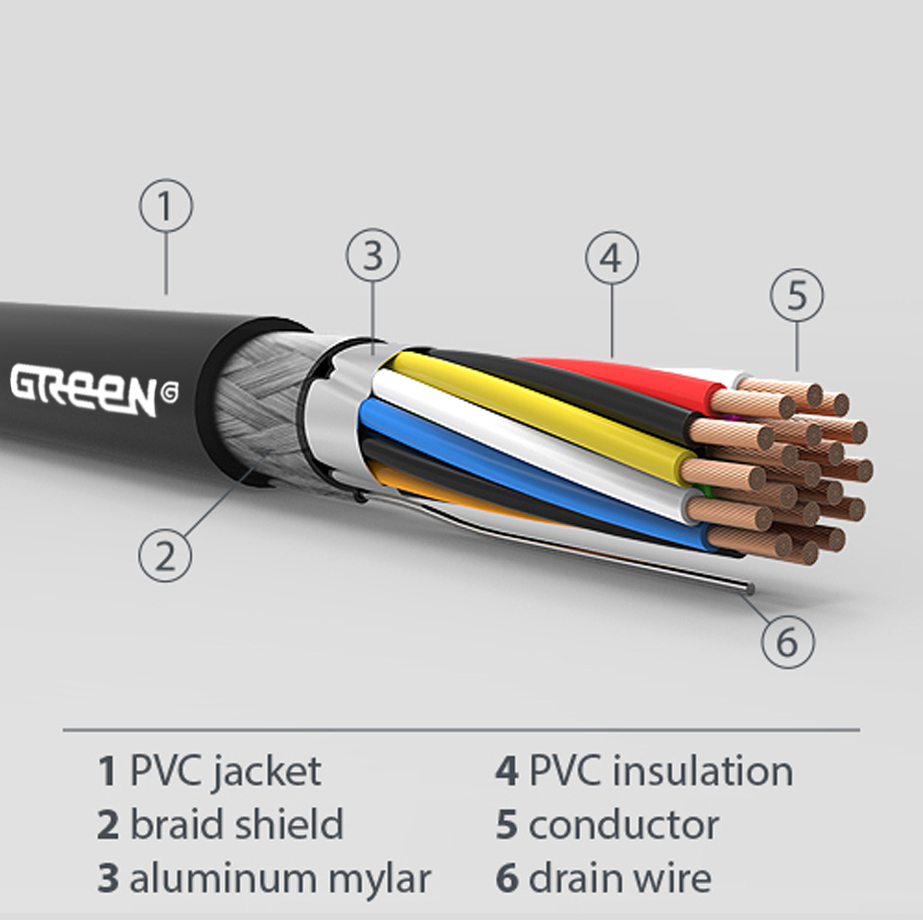

UL2103

Wire Type
Multiple-Conductor Cable using Non-Integral Jacket
Application
Internal wiring.
Materials/Standard
Conductor:30-10 AWG, solid or stranded. in compliance with UL758
Insulation:Vinyl (PVC) insulated.
Shield:Optional.
Covering:Optional.
Braid:Optional, provided over Jacket.
Uniform thickness of wire to ensure easy stripping and cutting.
Passed UL VW-1 flame test.
Temperature Rate: 105°

UL2343

Wire Type
Jacketed Cable
Application
External interconnection of computers and electronic equipment.
Materials/Standard
Conductor: 30-16 AWG, solid or stranded. in compliance with UL758
Insulation: Vinyl (PVC) insulated.
Shield: Optional.
Covering: Optional A 6mil or heavier PVC covering may be extruded over the conductor assembly.
Uniform thickness of wire to ensure easy stripping and cutting.
Passed UL VW-1 flame test.
Temperature Rate: 80°


UL2385

Wire Type
Multiple-Conductor Cable using Non-Integral Jacket
Application
Internal or external wiring in Class 2 circuits of electronic equipment.
Materials/Standard
Conductor:30-16 AWG, solid or stranded. in compliance with UL758
Insulation:Vinyl (PVC) insulated.
Shield:Optional.
Covering:Optional A 6mil or heavier PVC covering may be extruded over the conductor assembly.
Uniform thickness of wire to ensure easy stripping and cutting.
Passed UL VW-1 flame test.
Temperature Rate: 60°

UL2463

Wire Type
Multiple-Conductor Cable using Non-Integral Jacket
Application
Construction A: Internal wiring of X-ray Equipment, or in the internal or external interconnection of electronic equipment.
Construction B: External interconnection of electronic equipment in abuse areas, such as X-ray Equipment and Business Machines.
Materials/Standard
Conductor:30-16 AWG, solid or stranded, tinned or bare copper. In compliance with UL758
Insulation:Semi-rigid Vinyl (PVC) insulated.
Shield:Optional.
Covering:Optional A 6mil or heavier PVC covering may be extruded over the conductor assembly.
Uniform thickness of wire to ensure easy stripping and cutting.
Passed UL VW-1 flame test.
Temperature Rate: 80°

UL2464

Wire Type
Multiple-Conductor Cable using Non-Integral Jacket
Application
Internal or external wiring in Class 2 circuits of electronic equipment.
Materials/Standard
Conductor:26-12 AWG,bare or tinned copper conductor. in compliance with UL758
Insulation:Semi-rigid Vinyl (PVC) insulated.
Shield:Optional.
Covering:Optional, Braid.
Uniform thickness of wire to ensure easy stripping and cutting.
Passed UL VW-1 flame test.
Temperature Rate: 80°

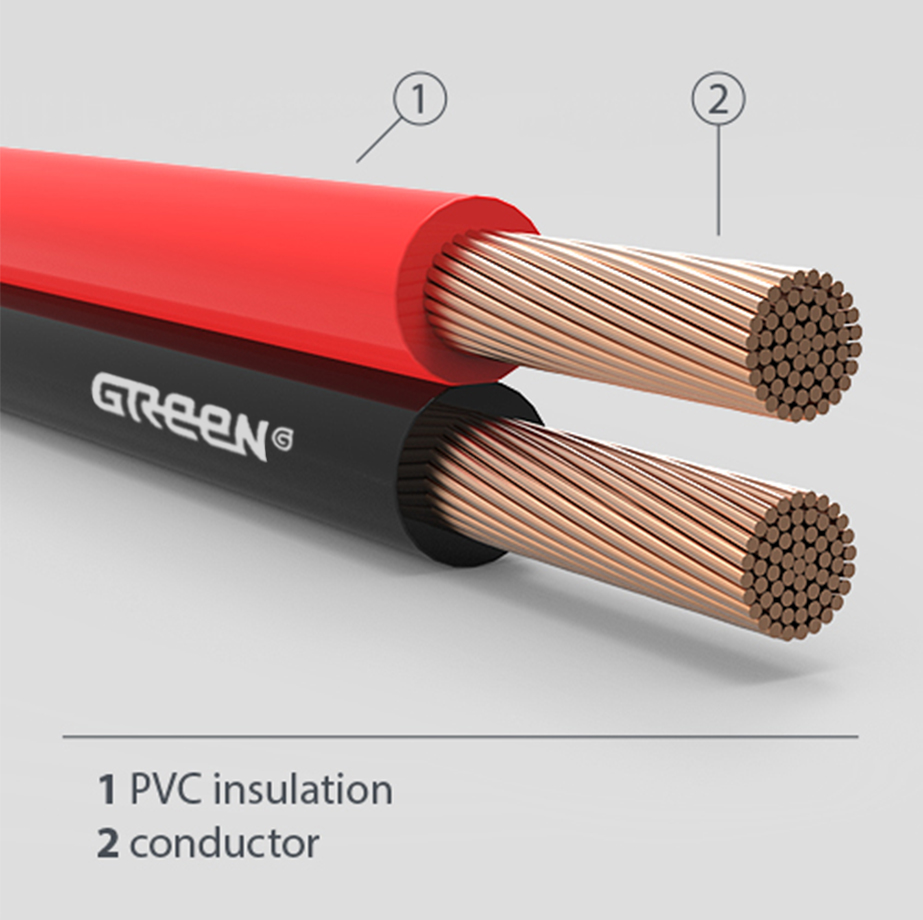

UL2468

Wire Type
Flat Ribbon Wire
Application
Internal wiring.
Materials/Standard
Conductor:32-16 AWG, solid or stranded. in compliance with UL758
Insulation:Vinyl (PVC) insulated.
Shield:Optional.
Covering:Extruded PVC, 5mm minimum thickness at any point, 80mm maximum thickness.
Uniform thickness of wire to ensure easy stripping and cutting.
Passed UL VW-1 flame test.
Temperature Rate: 80°

UL2502

Wire Type
Multiple-conductor cable using non-integral jacket
Application
Internal wiring or external wiring.
Materials/Standard
Conductor:26-16 AWG, solid or stranded. in compliance with UL758
Insulation:Semi-rigid Vinyl (PVC) insulated.
Shield:Optional.
Covering:Optional, Braid.
Uniform thickness of wire to ensure easy stripping and cutting.
Passed UL VW-1 flame test.
Temperature Rate: 80°

UL2517

Wire Type
Multiple-conductor cable using non-integral jacket
Application
External interconnection of electronic equipment or internal wiring of electronic equipment or appliances.
Tags may also indicate the following: "600V peak for Electronic Use Only".
Materials/Standard
Conductor:26-16 AWG, solid or stranded. In compliance with UL758
Insulation:Semi-rigid Vinyl (PVC) insulated.
Shield:Optional.
Covering:Optional, Braid.
Uniform thickness of wire to ensure easy stripping and cutting.
Passed UL VW-1 flame test.
Temperature Rate: 105°


UL2574

Wire Type
Low Voltage Cable
Application
External Wiring.
Materials/Standard
Conductor:26-12 AWG, solid or stranded. in compliance with UL758.
Insulation:Semi-rigid Vinyl (PVC) insulated.
Shield:Optional.
Covering:Optional. A 6 mil or heavier PVC covering may be extruded over the conductor assembly.
Uniform thickness of wire to ensure easy stripping and cutting.
Passed UL VW-1 flame test.
Temperature Rate: 105°

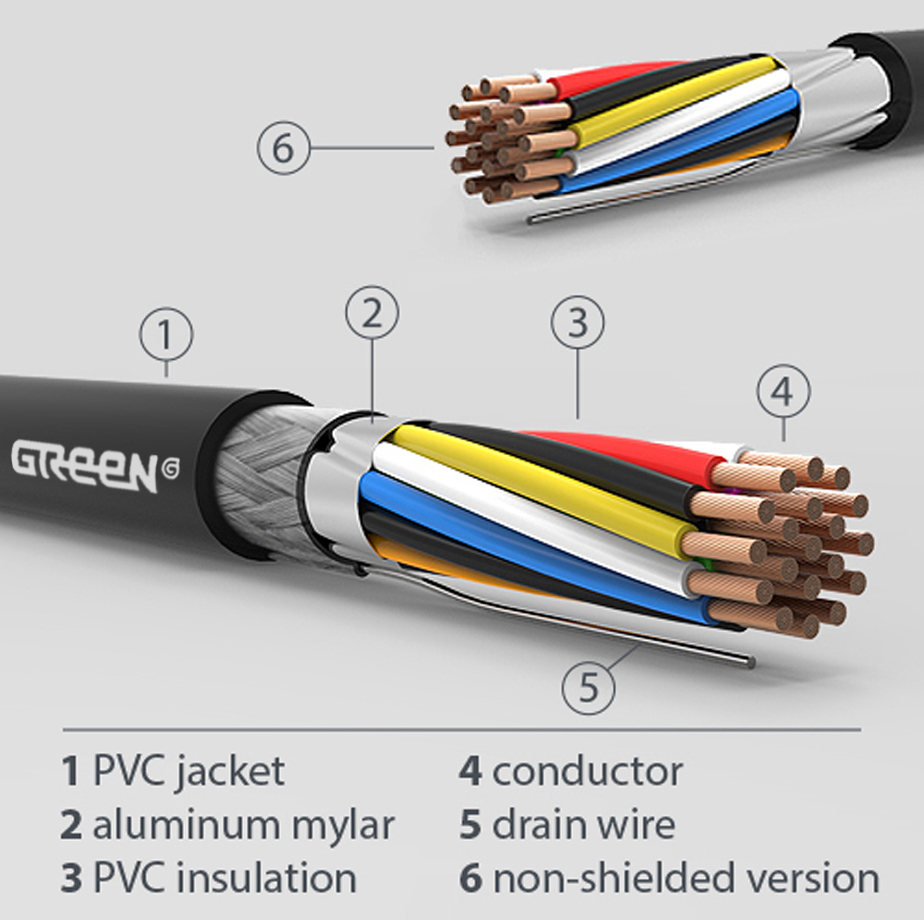

UL2586

Wire Type
Multiple-conductor cable using non-integral jacket
Application
External interconnection or internal wiring.
Materials/Standard
Conductor:20-08 AWG, solid or stranded. in compliance with UL758.
Insulation:Vinyl (PVC) insulated.
Shield:Optional.
Covering:Optional, Braid.
Uniform thickness of wire to ensure easy stripping and cutting.
Passed UL VW-1 flame test.
Temperature Rate: 105°

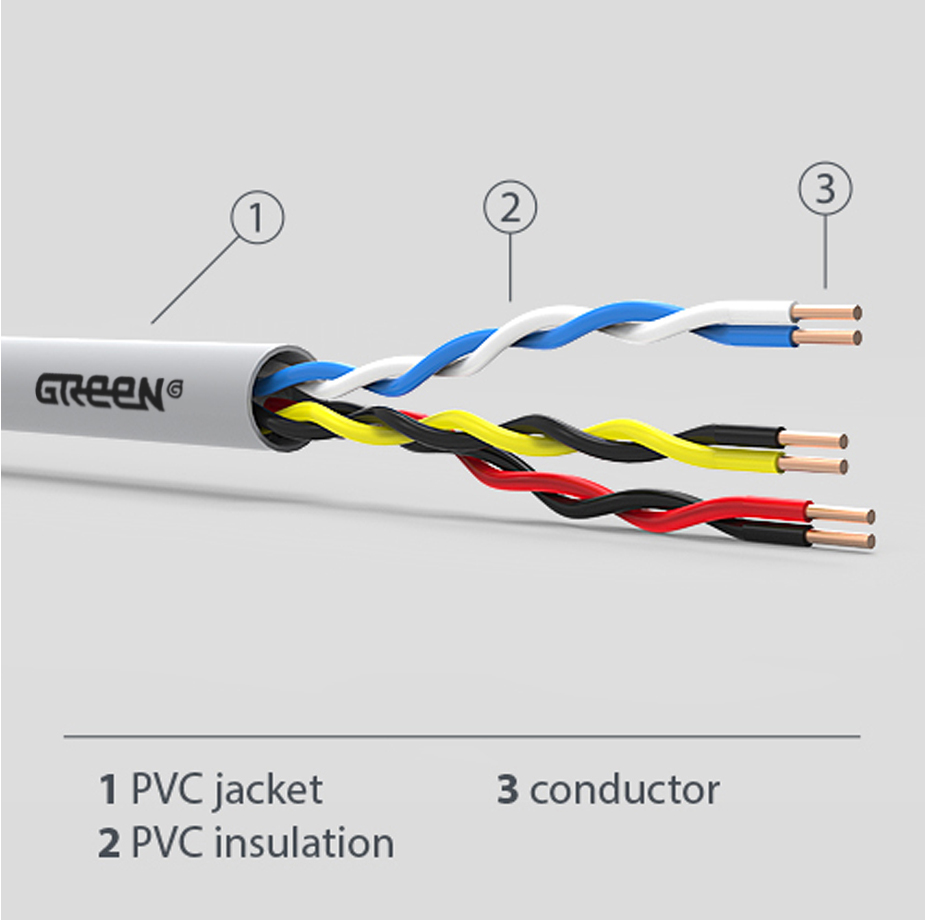

UL2725

Wire Type
Multiple-conductor cable using non-integral jacket
Application
Internal wiring of electronic equipment in Class 2 systems only.
Materials/Standard
Conductor:26-20 AWG, solid or stranded. In compliance with UL758
Insulation:Semi-rigid Vinyl (PVC) insulated.
Shield:Optional.
Uniform thickness of wire to ensure easy stripping and cutting.
Passed UL VW-1 flame test.
Temperature Rate: 105°

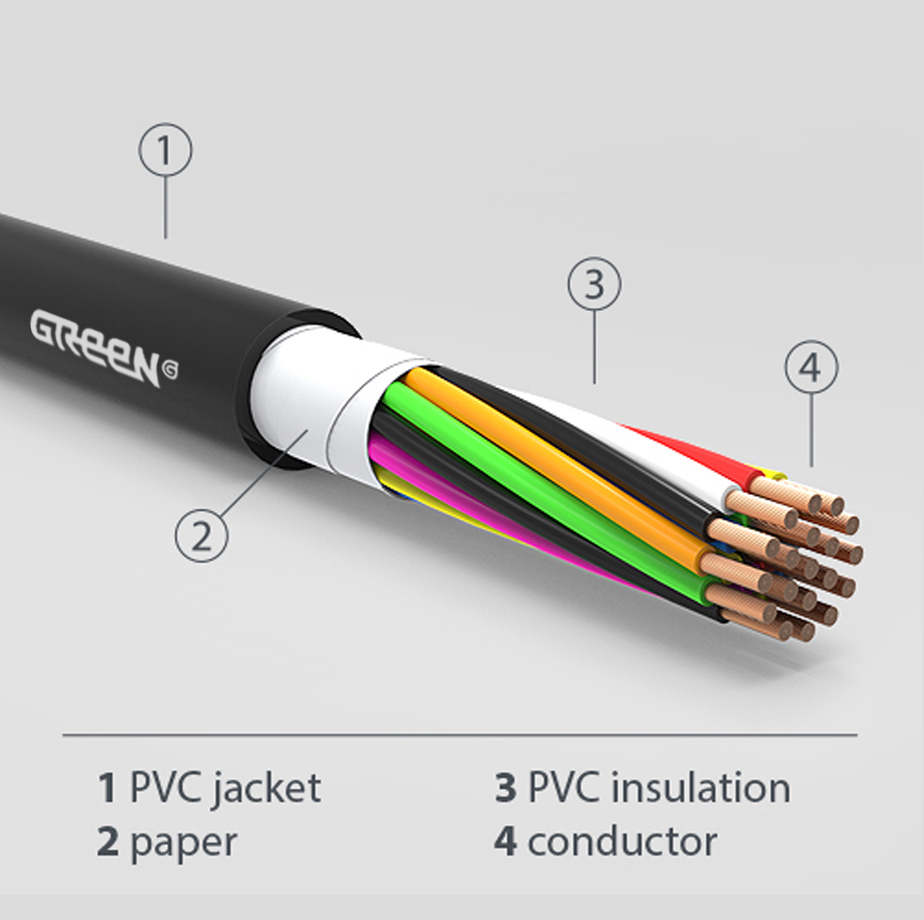

UL2733

Wire Type
Multiple-Conductor Cable using Non-Integral Extruded Jacket
Application
Internal Wiring.
Materials/Standard
Conductor:26-08 AWG, solid or stranded. In compliance with UL758
Insulation:Vinyl (PVC) insulated.
Shield:Optional.
Uniform thickness of wire to ensure easy stripping and cutting.
Passed UL VW-1 flame test.
Temperature Rate: 105°

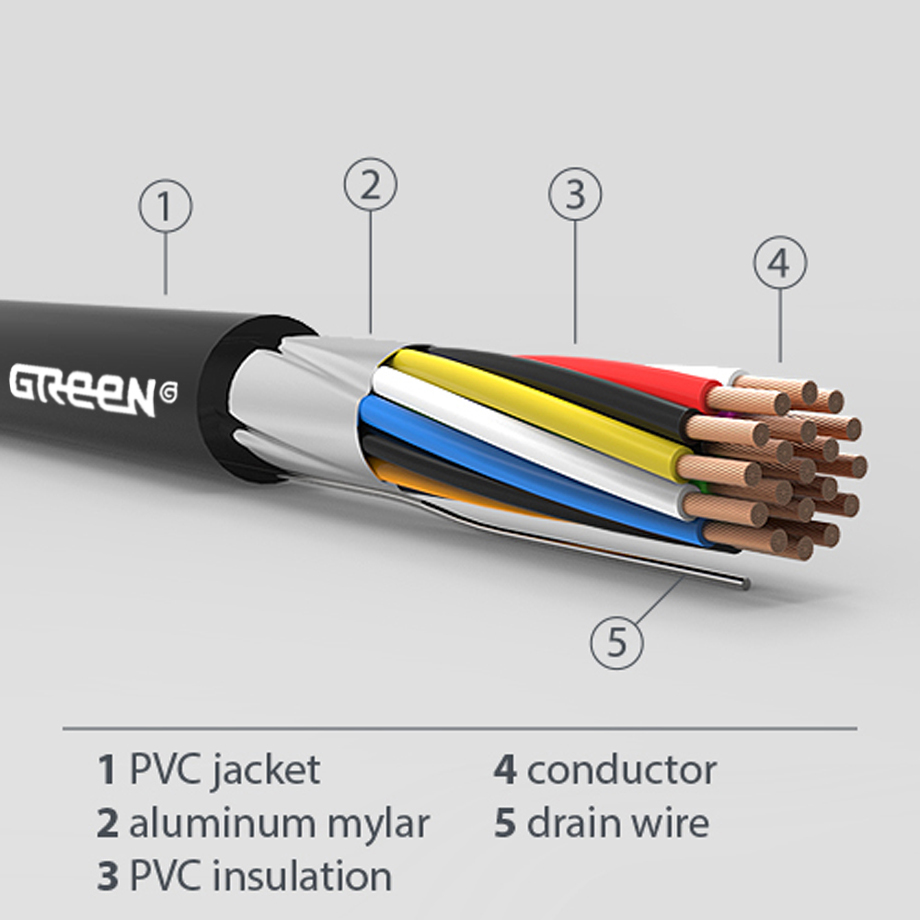

UL2835

Wire Type
Multiple-Conductor Cable Using Extruded Non-Integral Jacket
Application
For internal wiring in Class 2 circuits of electronic equipment or TV game machine data transmission
Materials/Standard
Conductor:28-20 AWG, solid or stranded. in compliance with UL758
Insulation:Semi-rigid Vinyl (PVC) insulated.
Shield:Optional.
Covering:Optional, Braid.
Uniform thickness of wire to ensure easy stripping and cutting.
Passed UL VW-1 flame test.
Temperature Rate: 60°

UL2854

Wire Type
Multiple-Conductor Cable with Extruded Non-Integral Jacket
Application
Internal wiring of electronic equipment in Class 2 Systems Only.
Materials/Standard
Conductor:28-20 AWG, solid or stranded. In compliance with UL758
Insulation:Semi-rigid Vinyl (PVC) insulated.
Shield:Optional.
Covering:Optional, Braid.
Uniform thickness of wire to ensure easy stripping and cutting.
Passed UL VW-1 flame test.
Temperature Rate: 80°


UL2919

Wire Type
Multiple-conductor cable with non-integral jacket
Application
Internal wiring or external interconnection in Class 2 Circuits of electronic computers and electric business machines.
Materials/Standard
Conductor:26-14 AWG, solid or stranded. In compliance with UL758
Insulation:Semi-rigid Vinyl (PVC) insulated.
Shield:Optional.
Covering:Optional, Braid.
Uniform thickness of wire to ensure easy stripping and cutting.
Passed UL VW-1 flame test.
Temperature Rate: 80°

UL2990

Wire Type
Multiple-conductor cable using non-integral jacket
Application
Internal Wiring or External Interconnection of Electronic Equipment, class 2 circuits only.
Materials/Standard
Conductor:26-14 AWG, solid or stranded. In compliance with UL758
Insulation:Semi-rigid Vinyl (PVC) insulated.
Shield:Optional.
Covering:Optional.
Uniform thickness of wire to ensure easy stripping and cutting.
Passed UL VW-1 flame test.
Temperature Rate: 80°

UL20276

Wire Type
Multiple-conductor cable with extruded non-integral jacket
Application
Construction A: Internal wiring or external interconnection of electronic equipment in Class 2 circuits only.
Construction B: Internal wiring of electronic equipment in Class 2 circuits only.
Materials/Standard
Conductor:26-16 AWG, solid or stranded. In compliance with UL758
Insulation:Semi-rigid Vinyl (PVC) insulated.
Shield:Optional.
Covering:Optional, Braid.
Uniform thickness of wire to ensure easy stripping and cutting.
Passed UL VW-1 flame test.
Temperature Rate: 60°, 80°


UL20379

Wire Type
Multiple-conductor cable using non-integral jacket
Application
Use No. 1 - Internal wiring in Class 2 circuits of electronic equipment where each end is terminated in connectors.
Use No. 2 - Internal wiring in Class 2 circuits of electronic equipment or external interconnection in Class 2 circuits of electronic equipment where not routed along walls, floors, or other abuse areas.
Materials/Standard
Conductor:26-16 AWG, solid or stranded. In compliance with UL758
Insulation:Semi-rigid Vinyl (PVC) insulated.
Shield:Optional.
Covering:Optional, Braid.
Uniform thickness of wire to ensure easy stripping and cutting.
Passed UL VW-1 flame test.
Temperature Rate: 60°, 80°
