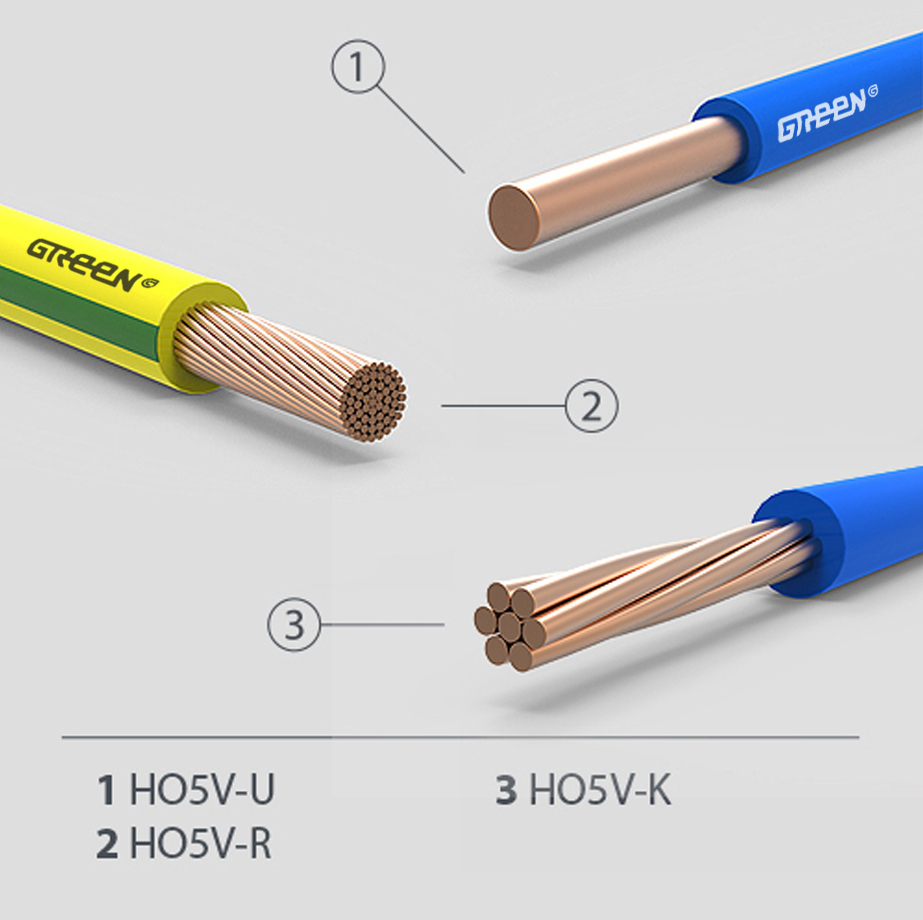

H05V-U, H05V-R, H05V-K

Wire Type
Single core PVC insulated non sheathed cables for general purposes
Application
Fixed protected installation inside appliances and in, or on, lighting fittings. Suitable for installation in surface mounted or embedded conduits, only for signalling or control circuits.
Materials/Standard
Conductor : annealed copper conductor acc. to EN 60228:
class 1 solid H05V-U,
class 2 stranded H05V-R,
class 5 flexible H05V-K
Insulation : Vinyl (PVC) insulated compound type TI 1.
Temperature Rate: 70°

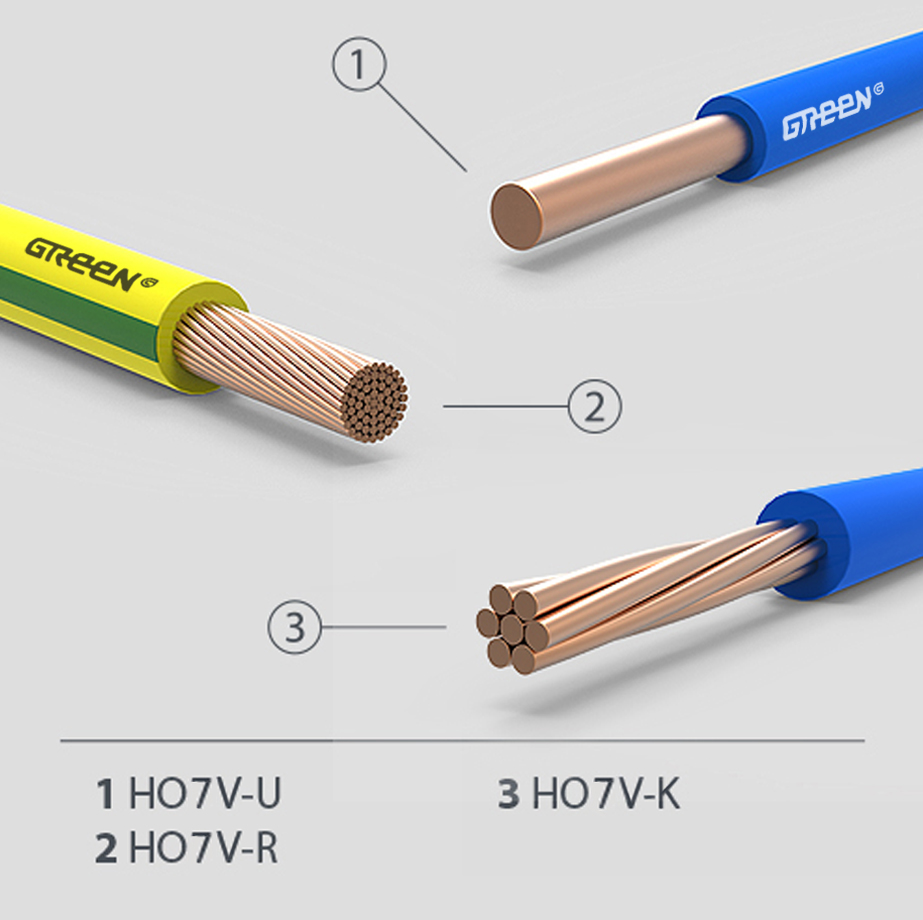

H07V-U, H07V-R, H07V-K

Wire Type
Single core PVC insulated non sheathed cables for general purposes
Application
Installation in surface mounted or embedded conduits, or similar closed systems. Suitable for fixed protected installation in, or on, lighting or control gear for voltages up to 1000V a.c. or, up to 750V d.c. to earth.
Materials/Standard
Conductor : annealed copper conductor acc. to EN 60228:
class 1 solid -H07V-U,
class 2 stranded H07V-R,
class 5 flexible H07V-K
Insulation : Vinyl (PVC) insulated compound type TI 1.
Temperature Rate: 70°
