JIS | Automotive Cable

JIS Standard (Japan) | Automotive Cable Power Cable Power Plug

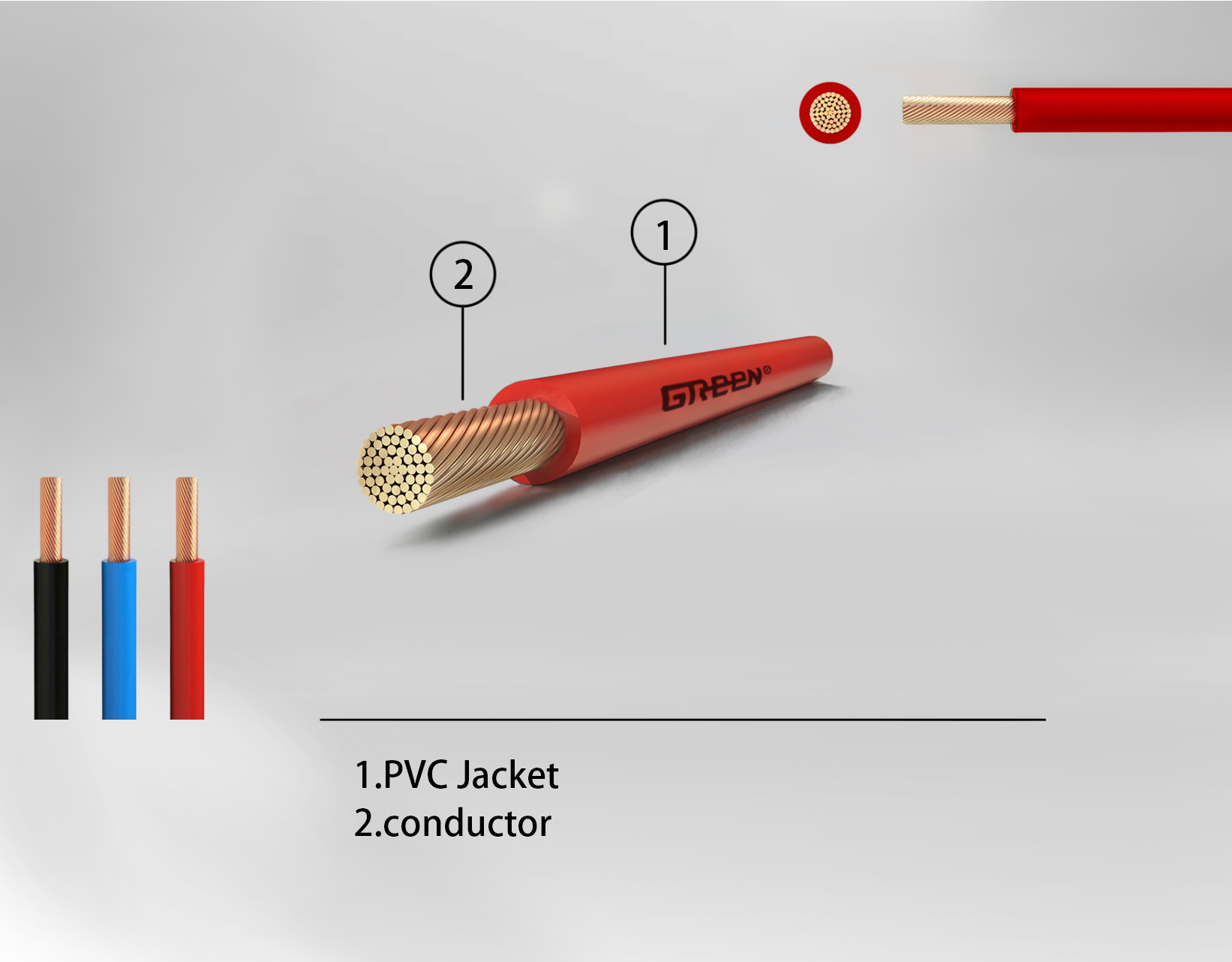

AV

Wire Type
AV JIS General Purpose - Basic Type
Application
Insulated low-tension wires for automobiles, motorcycles and other motor vehicles. JIS C 3406 compliant.
Materials/Standard
Conductor : Soft-annealed copper wires in compliance with JIS C 3102.
Insulation : Vinyl (PVC) insulated. In compliance with JIS C 3406 and RoHS Directive.
Temperature Rate: 80°

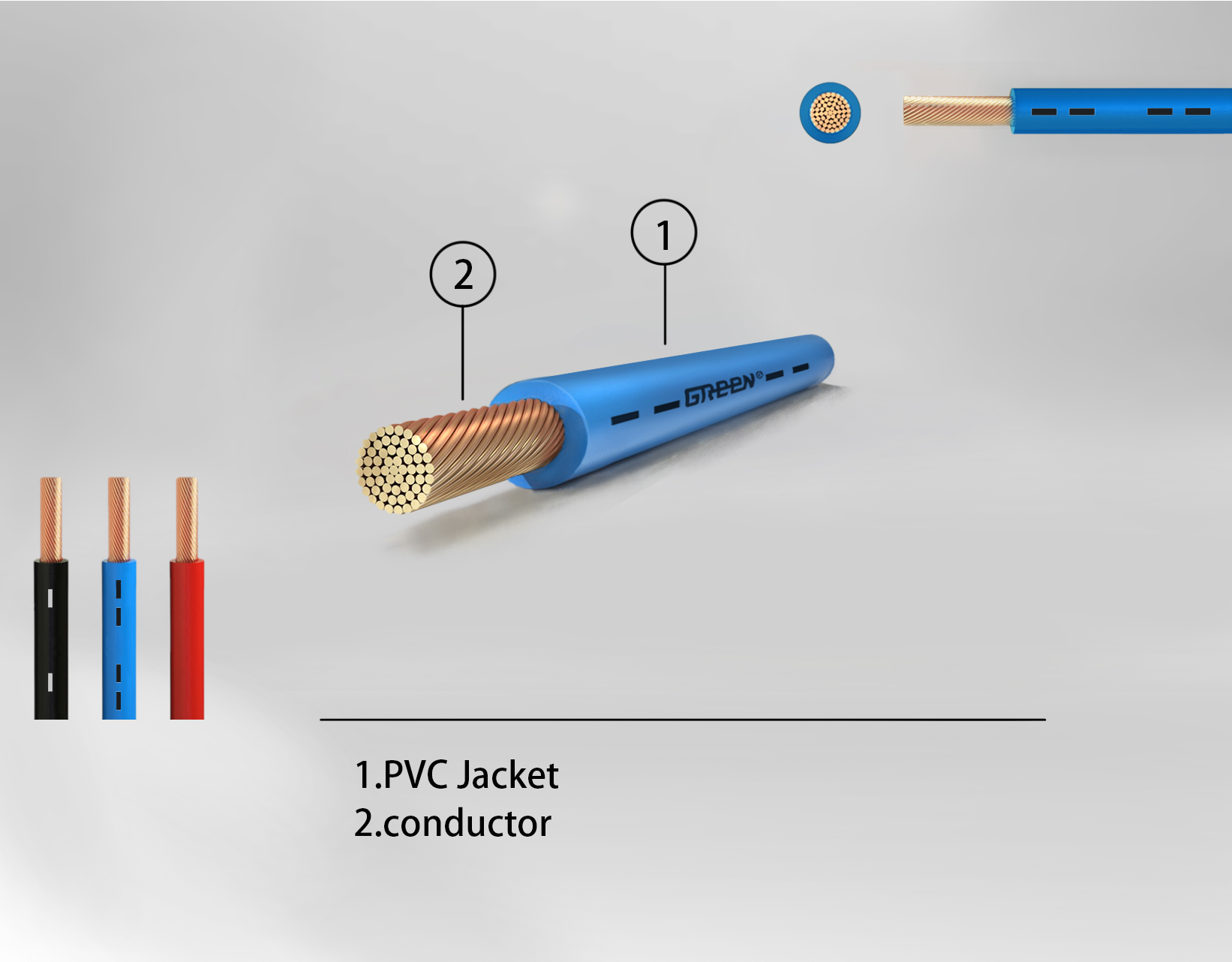

AVS

Wire Type
AVS JIS General Purpose - Thin Wall Insulated Type
Application
Low-tension wires with thin wall insulation for automobiles, motorcycles and motor vehicles. JASO D 611-94 compliant.
Materials/Standard
Conductor : Soft-annealed copper wires in compliance with JIS C 3102.
Insulation : Vinyl (PVC) insulated. In compliance with JASO D 611-94 and RoHS Directive.
Temperature Rate: 80°

AVSS

Wire Type
AVSS JASO General Purpose - Extra Thin Wall Insulated Type
Application
Low-tension wires with extra thin wall insulation for automobiles, motorcycles and other motor vehicles. JASO D 611-94 compliant.
Materials/Standard
Conductor : Soft-annealed copper wires in compliance with JIS C 3102.
Insulation : Vinyl (PVC) insulated. In compliance with JASO D 611-94 and RoHS Directive.
Temperature Rate: 80°

AVSSH - JASO

Wire Type
AVSSH JASO Heat Resistant Wires - Heat Resistant and Extra Thin Wall Insulated
Application
High heat-resistant and low-tension wires with extra thin wall insulation for automobiles, motorcycles and other motor vehicles.JASO D 611-94 compliant.
Materials/Standard
Conductor : Soft-annealed copper wires in compliance with JIS C 3102.
Insulation : Vinyl (PVC) insulated. In compliance with JASO D 611-94 and RoHS Directive.
Temperature Rate: 100°

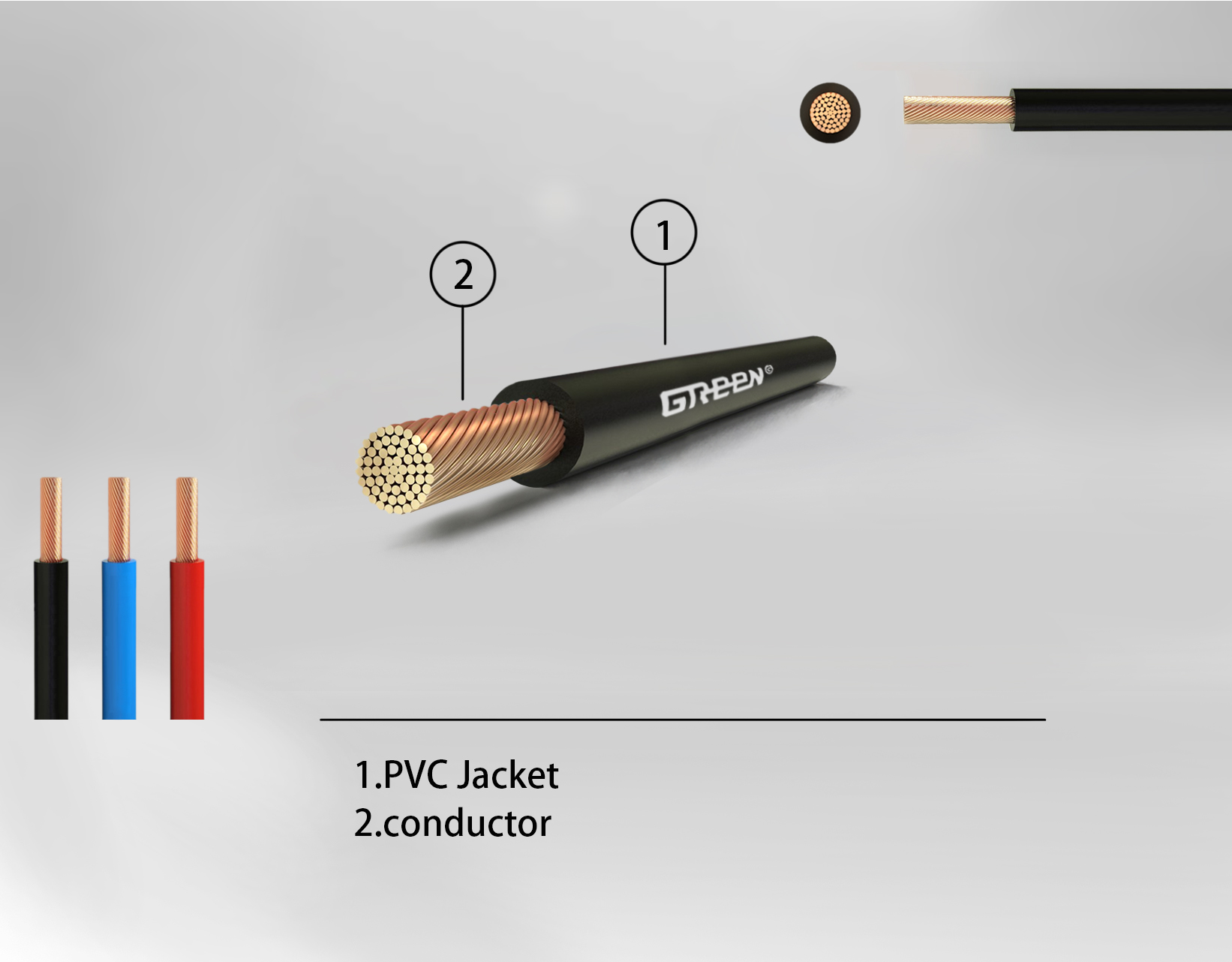

AEX - JASO

Wire Type
AEX JASO Heat Resistant Wires - Heat Resistant and Crosslinked PE insulated
Application
Crosslinked PE insulated and higher heat-resistant low-tension wires for automobiles, motorcycles and other motor vehicles.JASO D 608-92 compliant.
Materials/Standard
Conductor : Soft-annealed copper wires in compliance with JIS C 3102.
Insulation : Crosslinked PE insulated. In compliance with JASO D 608-92 and RoHS Directive.
Temperature Rate: -40° ~ +125°

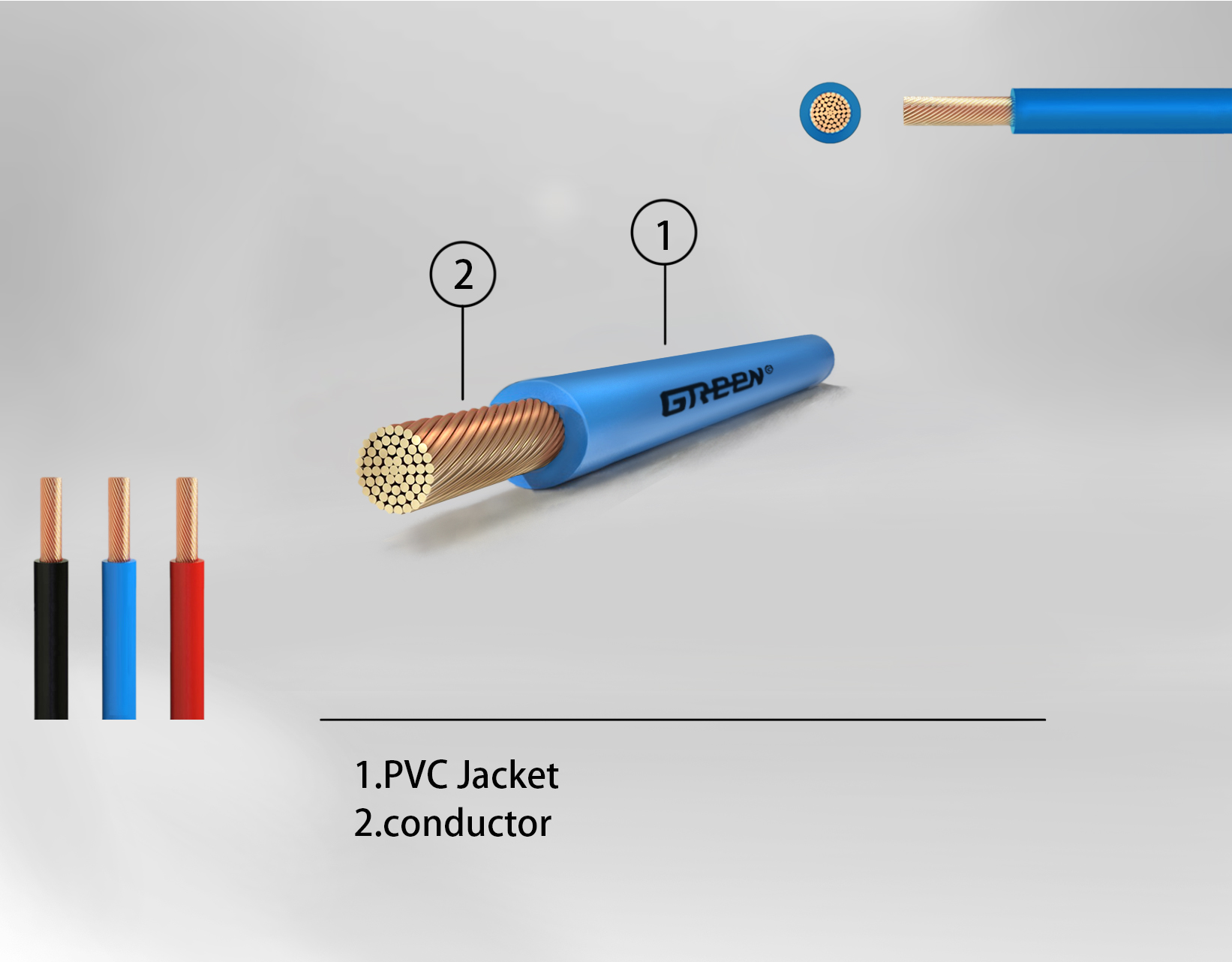

AESSX

Wire Type
AESSX Super Thin Heat-resistant Low-voltage Wires for Automobiles
Application
Super Thin Crosslinked PE insulated and higher heat-resistant low-tension wires for automobiles, motorcycles and other motor vehicles.
Materials/Standard
Conductor : Soft-annealed copper wires in compliance with JIS C 3102.
Insulation : Crosslinked PE insulated. In compliance with RoHS Directive.
Temperature Rate: -40° ~ +125°

AVX - JASO

Wire Type
AVX JASO Heat Resistant Wires - Heat Resistant and Crosslinked PVC Insulated
Application
Crosslinked PVC insulated and higher heat-resistant low-tension wires for automobiles, motorcycles and other motor vehicles. JASO D 608-92 compliant.
Materials/Standard
Conductor : Soft-annealed copper wires in compliance with JIS C 3102.
Insulation : Crosslinked PVC insulated. In compliance with JASO D 608-92 and RoHS Directive.
Temperature Rate: 100°

CAVS - JASO

Wire Type
CAVS JASO Thin Wall, with Compressed Conductor
Application
Low-tension wires with compressed conductor and thin wall insulation for automobiles, motorcycles and other motor vehicles.JASO D 611-94 compliant.
Materials/Standard
Conductor : Soft-annealed copper wires in compliance with JIS C 3102.
Insulation : Vinyl (PVC) insulated. In compliance with JASO D 611-94 and RoHS Directive.
Temperature Rate: 80°

CAVUS - JASO

Wire Type
CAVUS JASO Ultra Thin Wall, with Compressed Conductor
Application
Low-tension wires with compressed conductor and ultra thin wall insulation for automobiles, motorcycles and other motor vehicles. JASO D 611-94 compliant.
Materials/Standard
Conductor : Soft-annealed copper wires in compliance with JIS C 3102.
Insulation : Vinyl (PVC) insulated. In compliance with JASO D 611-94 and RoHS Directive.
Temperature Rate: 80°
