VDE | Automotive Cable
VDE Standard (Germany) | Automotive Cable Building Wires Power Cable Power Plug
FLRY-A
Wire Type
FLRY-A Thin Wall, with Concentric Conductor (Type A)
Application
Low-tension wires with thin wall insulation for automobiles, motorcycles and other motor vehicles. ISO 6722 compliant.
Materials/Standard
Conductor : Soft-annealed copper wires in compliance with ISO 6722
Insulation : Vinyl (PVC) insulated. In compliance with ISO 6722 and RoHS Directive
Temperature Rate: -40° ~ +105°

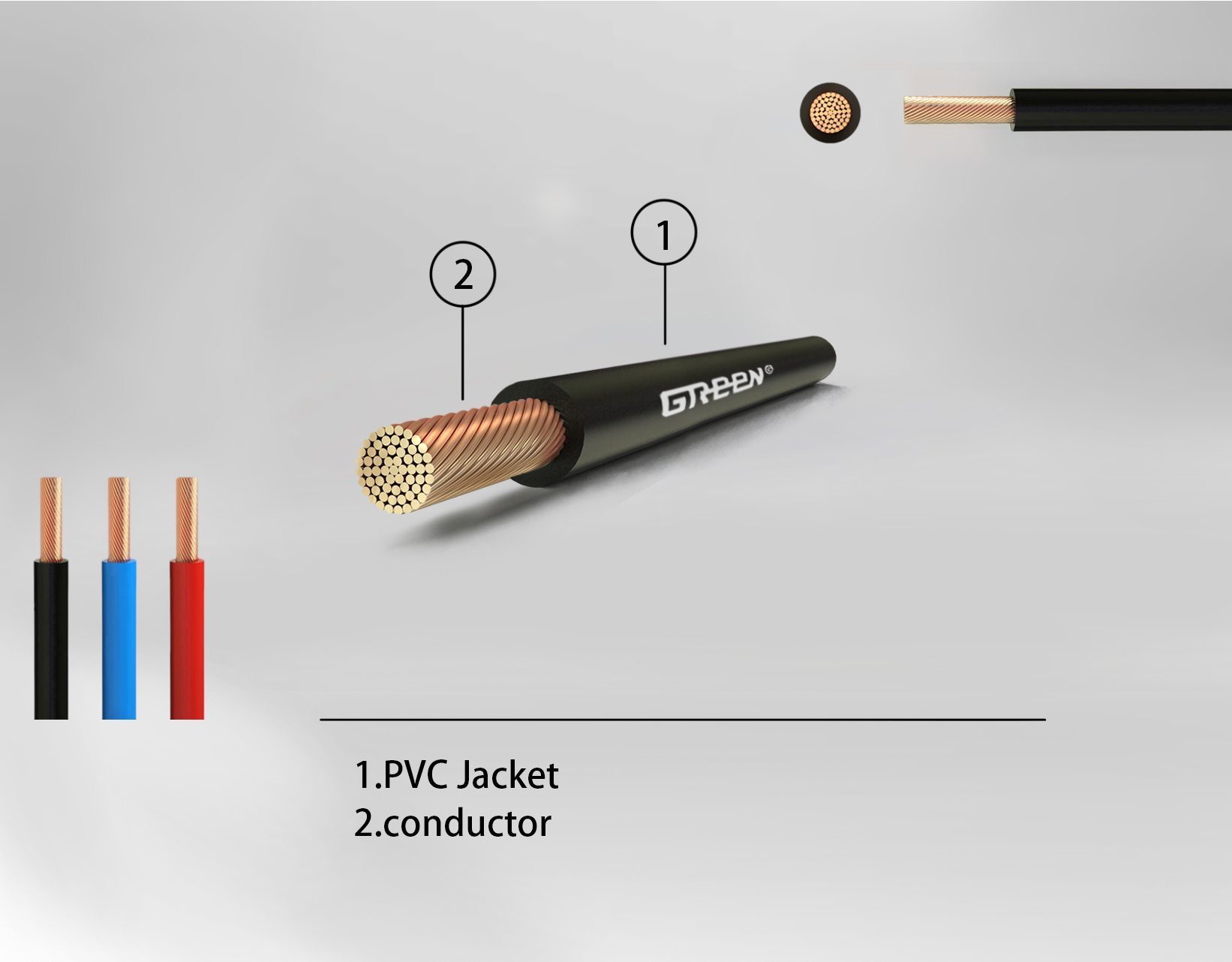

FLRY-B
Wire Type
FLRY-B Thin Wall, with Conductor (Type B)
Application
Low-tension wires with thin wall insulation for automobiles, motorcycles and other motor vehicles. ISO 6722 compliant.
Materials/Standard
Conductor : Soft-annealed copper wires in compliance with ISO 6722.
Insulation : Vinyl (PVC) insulated. In compliance with ISO 6722 and RoHS Directive
Temperature Rate: -40° ~ +105°

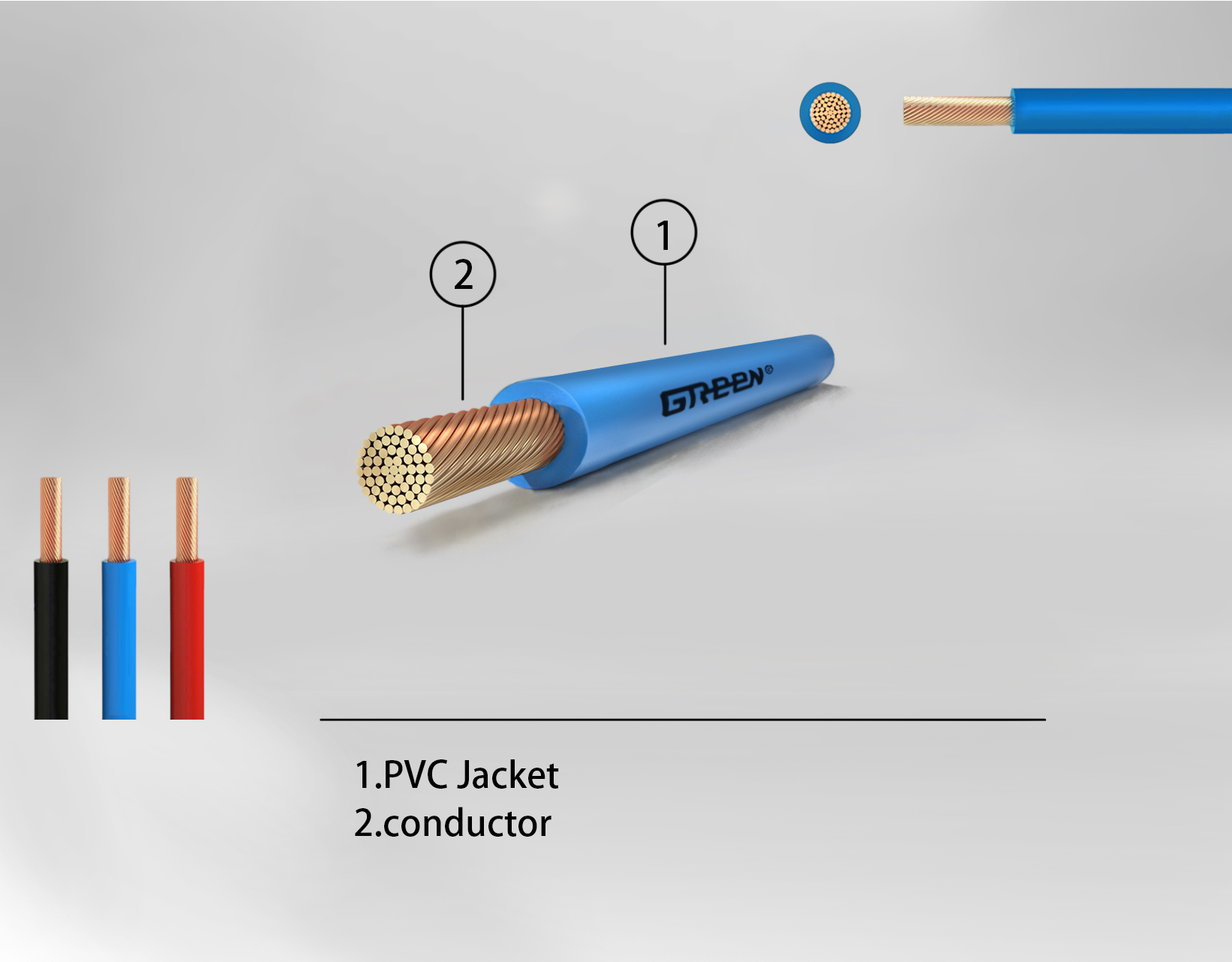

FLYW
Wire Type
FLYW Thick Wall, with Conductor
Application
Low-tension wires with thick wall insulation for automobiles, motorcycles and other motor vehicles. ISO 6722 compliant.
Materials/Standard
Conductor : Soft-annealed copper wires in compliance with ISO 6722.
Insulation : Vinyl (PVC) insulated. In compliance with ISO 6722 and RoHS Directive.
Temperature Rate: -40° ~ +105°

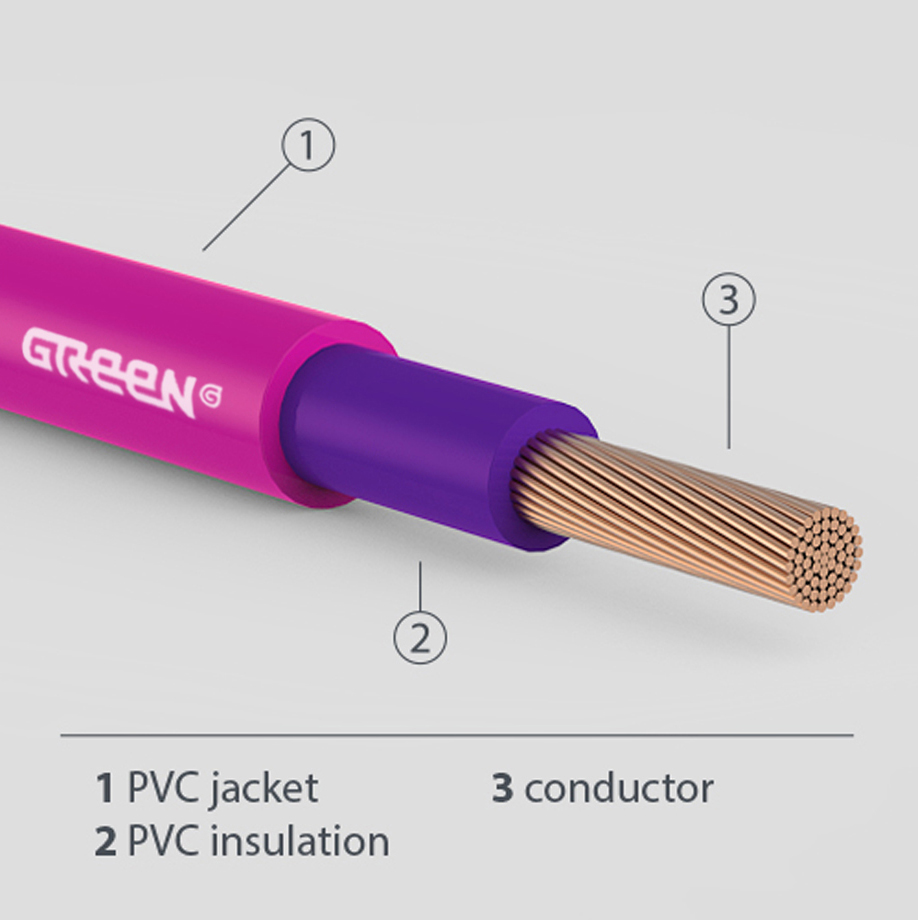

FLYY
Wire Type
FLYY Thick Wall, with Single Core and PVC sheath
Application
Low-tension wires with thick wall insulation and single core for automobiles, motorcycles and other motor vehicles. ISO 6722 compliant.
Materials/Standard
Conductor : Soft-annealed copper wires in compliance with ISO 6722.
Insulation : Vinyl (PVC) insulated. In compliance with ISO 6722 and RoHS Directive.
Sheath : Vinyl (PVC) insulated. In compliance with RoHS Directive
Temperature Rate: -40° ~ +105°
FLYY
Wire Type
FLYY Thick Wall, with Multi-Cores and PVC sheath
Application
Conductor : Soft-annealed copper wires in compliance with ISO 6722.
Materials/Standard
Conductor : Soft-annealed copper wires in compliance with ASTM B 3
Insulation : Vinyl (PVC) insulated. In compliance with ISO 6722 and RoHS Directive.
Sheath : Vinyl (PVC) insulated. In compliance with RoHS Directive.
Temperature Rate: -40° ~ +105°

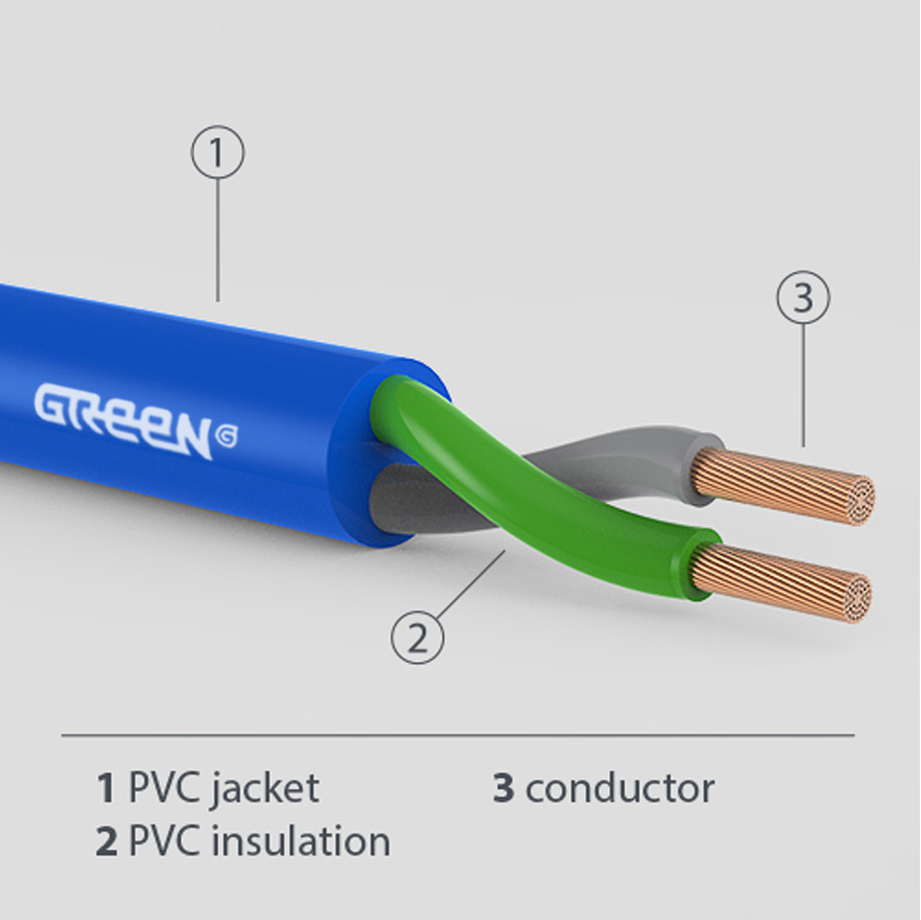

FLRYY
Wire Type
FLRYY Thick Wall, with Multi-Cores and PVC sheath
Application
Low-tension wires with thin wall insulation and multi-cores for automobiles, motorcycles and other motor vehicles. ISO 6722 compliant.
Materials/Standard
Conductor : Soft-annealed copper wires in compliance with ISO 6722.
Insulation : Vinyl (PVC) insulated. In compliance with ISO 6722 and RoHS Directive.
Sheath : Vinyl (PVC) insulated. In compliance with RoHS Directive.
Temperature Rate: -40° ~ +105°

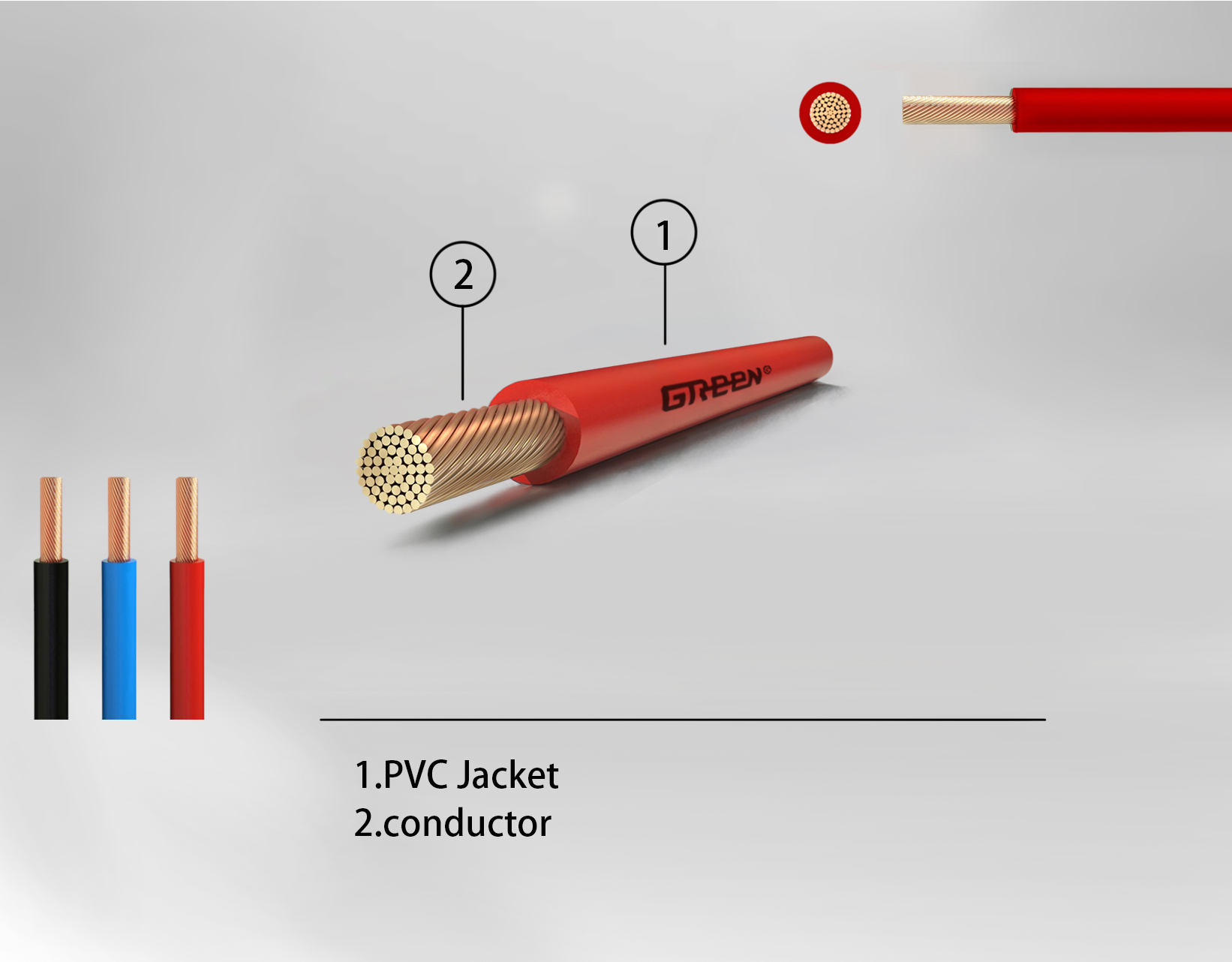

FL2X-A
Wire Type
Thick Wall, Crosslinked Polyolefin Insulated (Type A)
Application
Crosslinked PE insulated and higher Heat-resistant low-tension wires with insulation for automobiles, motorcycles and other motor vehicles. ISO 6722 compliant.
Materials/Standard
Conductor:Soft-annealed copper wires in compliance with ISO 6722.
Insulation:Crosslinked PE insulated. In compliance with ISO 6722 and RoHS Directive.
Temperature Rate: -40° ~ +125°
FL2X-B
Wire Type
Thick Wall, Crosslinked Polyolefin Insulated (Type B)
Application
Crosslinked PE insulated and higher Heat-resistant low-tension wires with insulation for automobiles, motorcycles and other motor vehicles. ISO 6722 compliant.
Materials/Standard
Conductor:Soft-annealed copper wires in compliance with ISO 6722.
Insulation:Crosslinked PE insulated. In compliance with ISO 6722 and RoHS Directive.
Temperature Rate: -40° ~ +125°
FLR2X-A
Wire Type
Thick Wall, Crosslinked Polyolefin Insulated (Type A)
Application
Crosslinked PE insulated and higher Heat-resistant low-tension wires with insulation for automobiles, motorcycles and other motor vehicles. ISO 6722 compliant.
Materials/Standard
Conductor:Soft-annealed copper wires in compliance with ISO 6722.
Insulation:Crosslinked PE insulated. In compliance with ISO 6722 and RoHS Directive.
Temperature Rate: -40° ~ +125°
