UL/cUL | Power Cables

UL/cUL Standard (America) | Automotive Cable Hook-Up Wires Multiple Cable Power Cable Power Plug

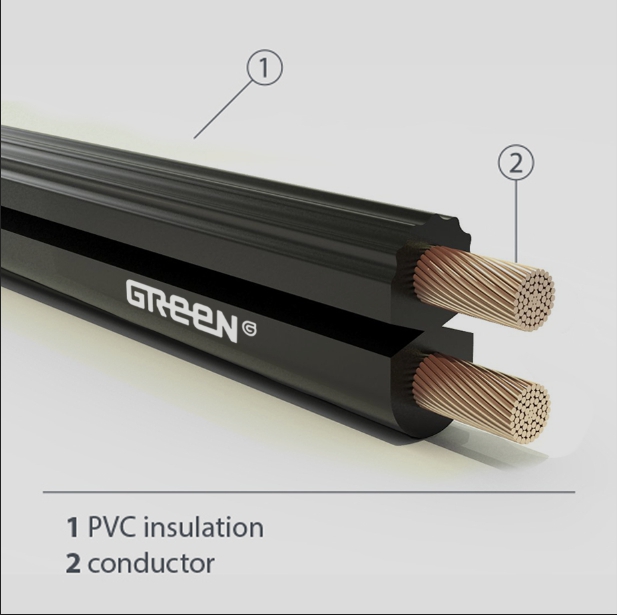

SPT

Wire Type
SPT- Parallel Cord, Flexible Cord
Application
SPT-1 & SPT-2 : For use in household clocks, fans, radios and similar appliances. SPT-2 is of heavier construction than SPT-1.
SPT-3 : For heavy-duty use in damp locations, especially suitable for refrigerators and room size air conditioners.
Materials/Standard
Conductor : 18-10 AWG, Soft-annealed copper(7.1 and 7.2). In compliance with UL62.
Insulation : Vinyl (PVC) insulated. (60°, 75°, 90°, 105°)
Breadless parallel cords. Passed UL VW-1 flame test. Colors available with black, brown, white, ivory.
Temperature Rate: 60°, 105°

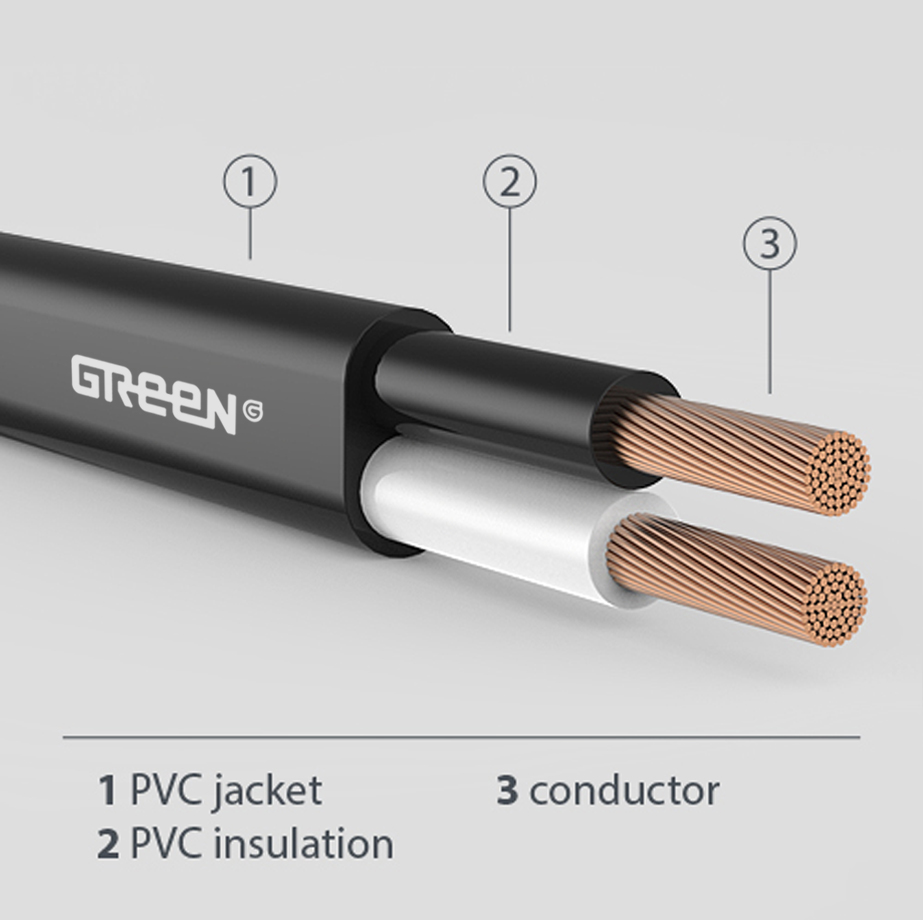

NISPT

Wire Type
NISPT- Parallel Cord, Flexible Cord
Application
Light Duty Cord for Pendant or Portable Use.
Materials/Standard
Conductor : 20-16 AWG, Soft-annealed copper(6.9A). In compliance with UL62.
Insulation : Vinyl (PVC) insulated. (60°, 75°, 90°, 105°)
Uniform thickness of wire to ensure easy stripping and cutting. Passed UL flame test.
Temperature Rate: 60°, 75°, 90°, 105°

SJT / SJTO

Wire Type
SJT / SJTO - Jacketed cord, Flexible Cord
Application
Power supply cord for electrical appliances
Materials/Standard
Conductor : 18-10 AWG, Soft-annealed copper(7.1 and 7.2). in compliance with UL 62 Table 6.15 Non-oil-resistant hard-service cords. UL 62 Table 6.14 Oil-resistant hard-service cords.
Insulation : Vinyl (PVC) insulated. (60°, 75°, 90°, 105°)
Uniform thickness of wire to ensure easy stripping and cutting. Passed UL VW-1 flame test. The above cords can all be filled with yarn, paper and wrapped braids.
Temperature Rate: 60°, 75°, 90°, 105°

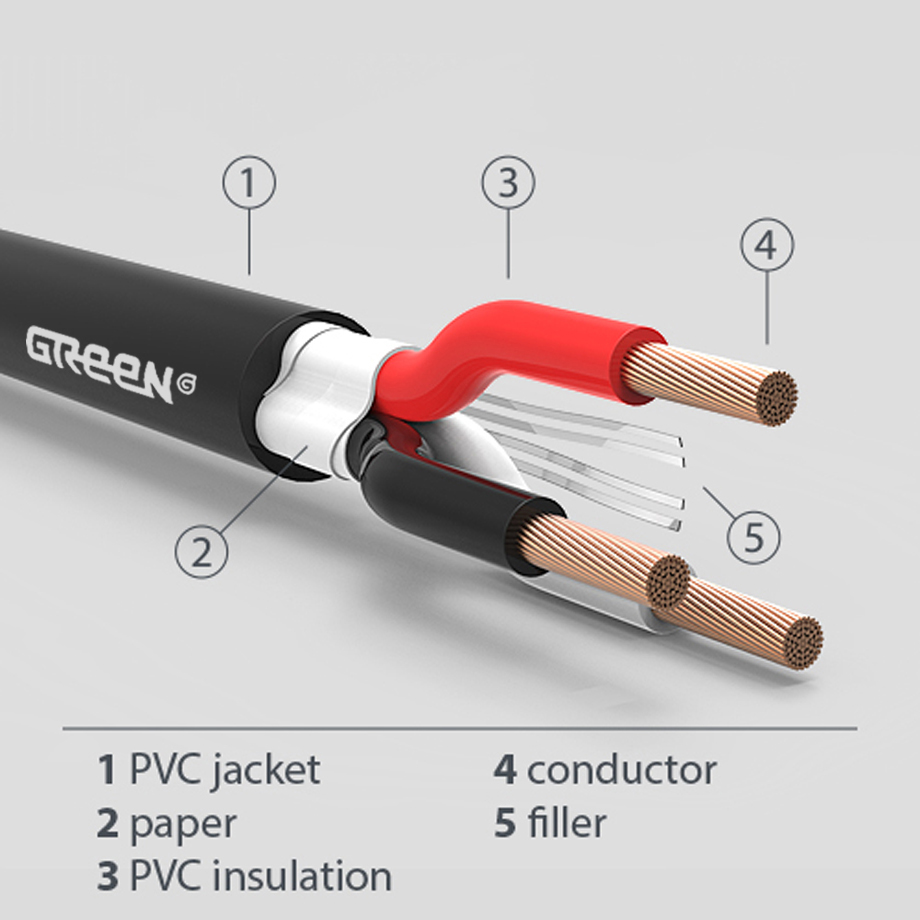

ST / STO

Wire Type
ST / STO - Jacketed cord, Flexible Cord
Application
Hard Service Cord for Motor Operated Tools.
Materials/Standard
Conductor : 18-2 AWG, Soft-annealed copper(7.1 and 7.2). in compliance with UL 62 Table 6.15 Non-oil-resistant hard-service cords. UL 62 Table 6.14 Oil-resistant hard-service cords.
Insulation : Vinyl (PVC) insulated. (60°, 75°, 90°, 105°)
Uniform thickness of wire to ensure easy stripping and cutting. Passed UL VW-1 flame test. The above cords can all be filled with yarn, paper and wrapped braids.
Temperature Rate: 60°, 75°, 90°, 105°

SVT

Wire Type
SVT - Jacketed cord, Flexible Cord
Application
Power Supply Cord for Vacuum Cleaners, Printers
Materials/Standard
Conductor : 18-14 AWG, Soft-annealed copper(7.1 and 7.2). in compliance with UL 62 Table 6.11 Non-oil-resistant hard-service cords.
Insulation : Vinyl (PVC) insulated. (60°, 75°, 90°, 105°)
Uniform thickness of wire to ensure easy stripping and cutting. Passed UL VW-1 flame test.
Temperature Rate: 60°, 75°, 90°, 105°

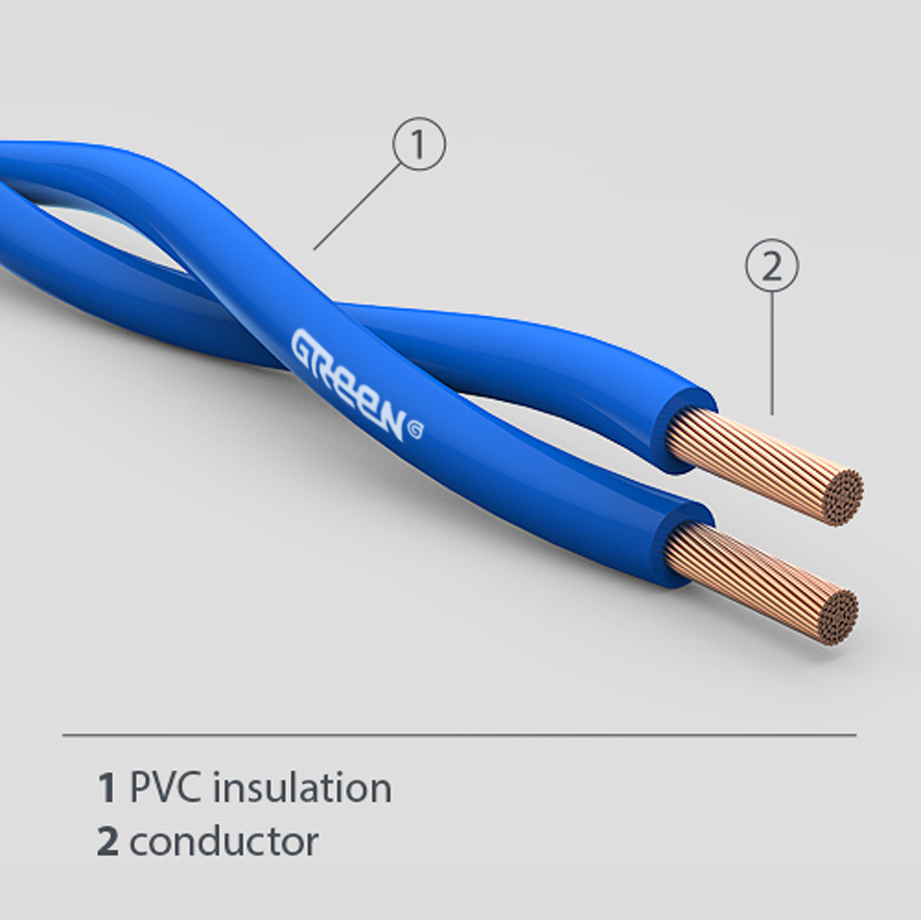

PXWT

Wire Type
PXWT - Decorative cord, Flexible Cord
Application
For use as wiring in Christmas lighting sets
Materials/Standard
Conductor : 18-16 AWG, Soft-annealed copper(7.1 and 7.2). in compliance with UL 62
Insulation : Semi-rigid Vinyl (PVC).
Uniform thickness of wire to ensure easy stripping and cutting. Passed UL VW-1 flame test.
Temperature Rate: 105°
