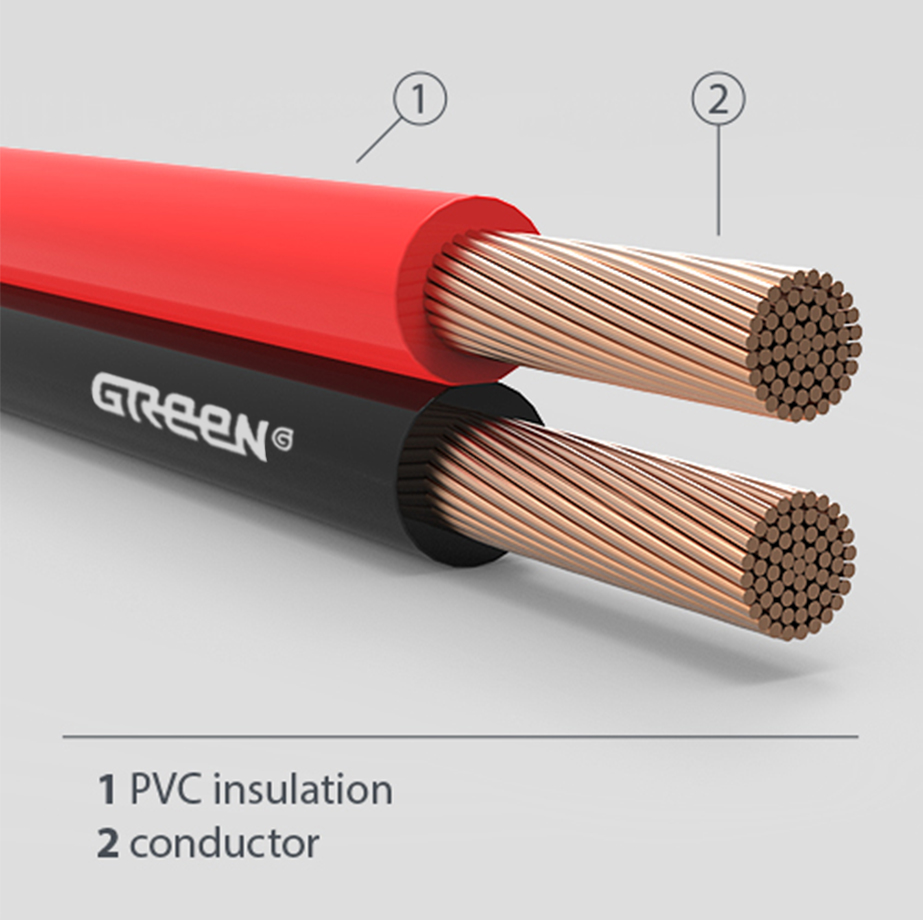

VFF / HVFF
Wire Type
300V Grade Polyvinylchloride Parallel Cord (fixible cord)
Application
Indoor Cords for Use in Electrical Appliances of A.C. 300V or Less.
Materials/Standard
Conductor : Bare stranded copper conductor. in compliance with JIS C3306 or CNS 3199.
Insulation : Vinyl (PVC) insulated.
Series of type : 0.5mm²×2C ~ 2.0mm²×4C
Cores twisted together.
PVC insulated flat twin cord.
Resistance to heat higher than 75°.
Temperature Rate: 60°

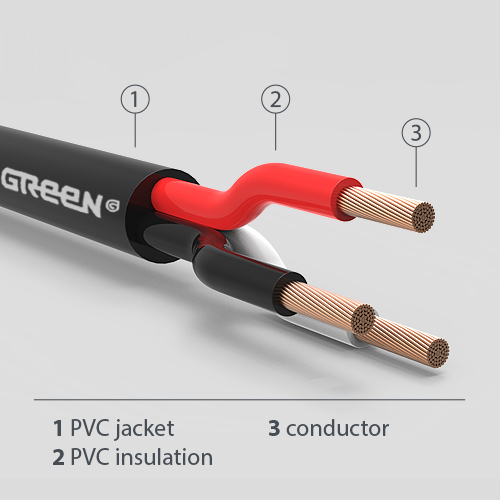

VCTF / HVCTF
Wire Type
VCTF / HVCTF - 300V PVC Insulated and Covered Circular Cords
Application
Indoor Cords for Use in Electrical Appliances of A.C. 300V or Less.
Materials/Standard
Conductor : Bare stranded copper conductor. in compliance with JIS C3306 or CNS 3199.
Insulation : Vinyl (PVC) insulated.
Series of type : 0.5mm²×2C ~ 2.0mm²×30C
Cores twisted together.
PVC jacketed rotundity.
Resistance to heat higher than 75°.
Temperature Rate: 60°, 75°

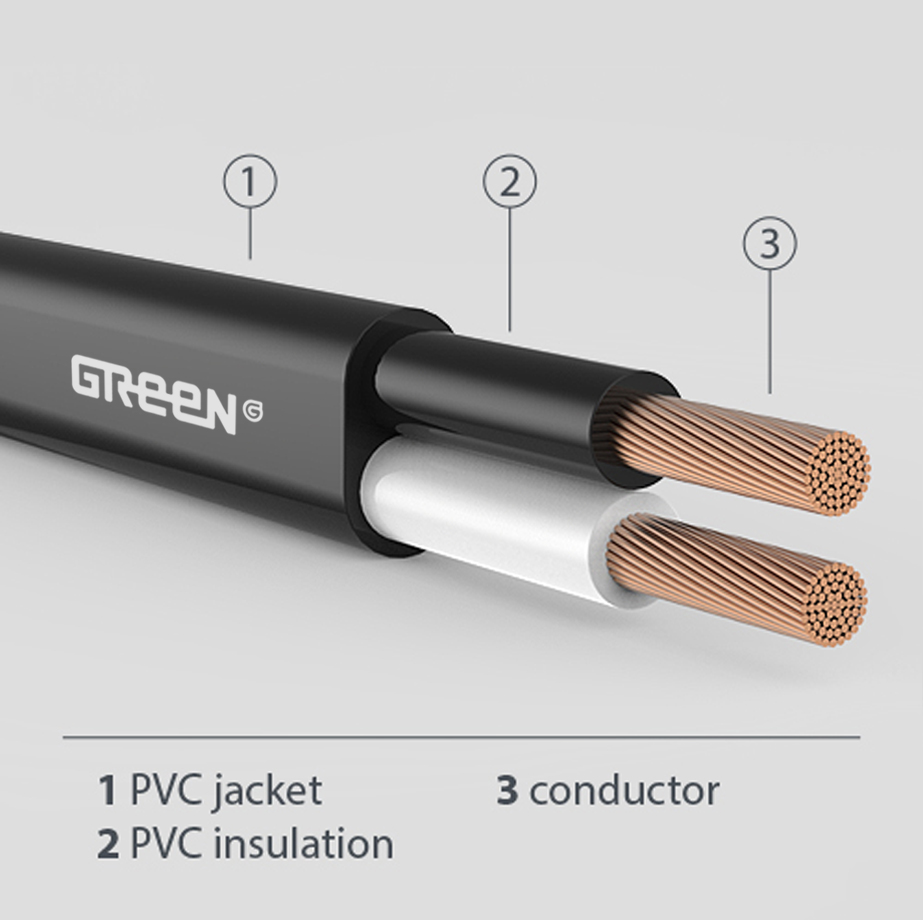

VCTFK / HVCTFK
Wire Type
VCTFK / HVCTFK - 300V PVC Insulated and Covered Circular Cords
Application
Indoor Cords for Use in Electrical Appliances of A.C. 300V or Less.
Materials/Standard
Conductor : Bare stranded copper conductor. in compliance with JIS C3306 or CNS 3199.
Insulation : Vinyl (PVC) insulated.
Series of type : 0.75mm²×2C ~ 2.0mm²×2C
PVC jacketed cord, oval type.
Resistance to heat higher than 75°.
Temperature Rate: 60°, 75°
