VDE Standard (Germany) | Automotive Cable Building Wires Power Cable Power Plug

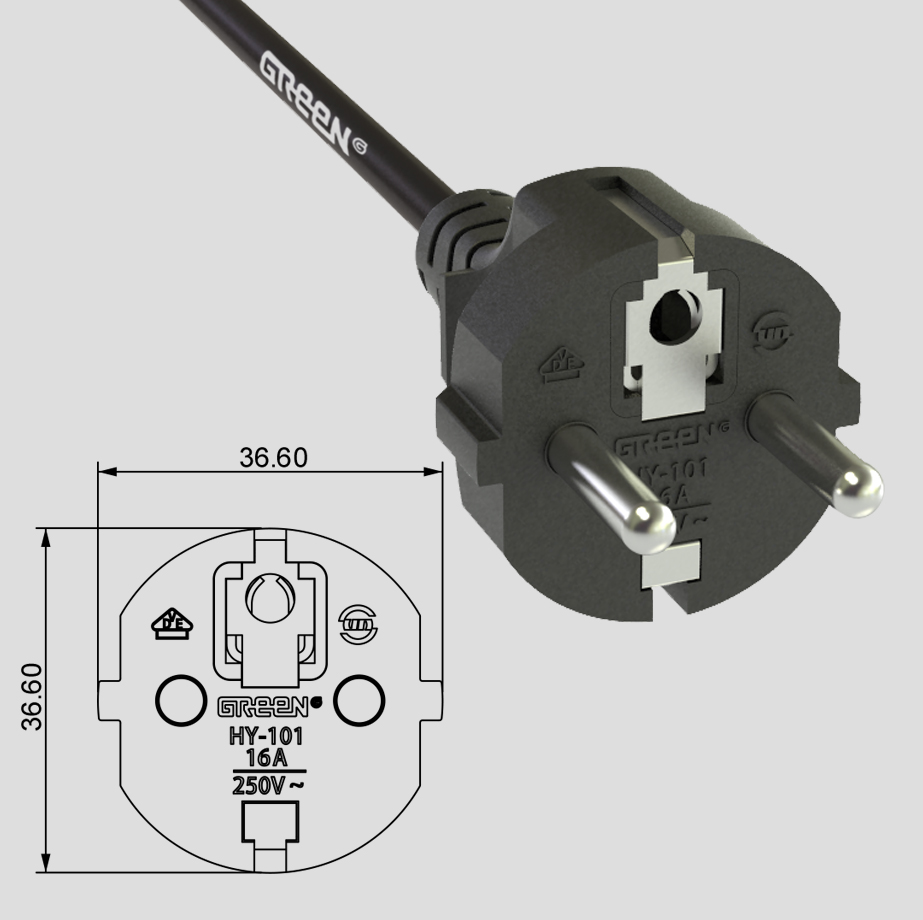

HY-101
Approval Mark:
Model:
HY-101
Complied Standards:
IEC 60884-1
Suitable Wire Specification:
H03VV-F 3×0.75 250V/16A H05VV-F 3×0.75 250V/16A H05VV-F 3×1.0 250V/16A

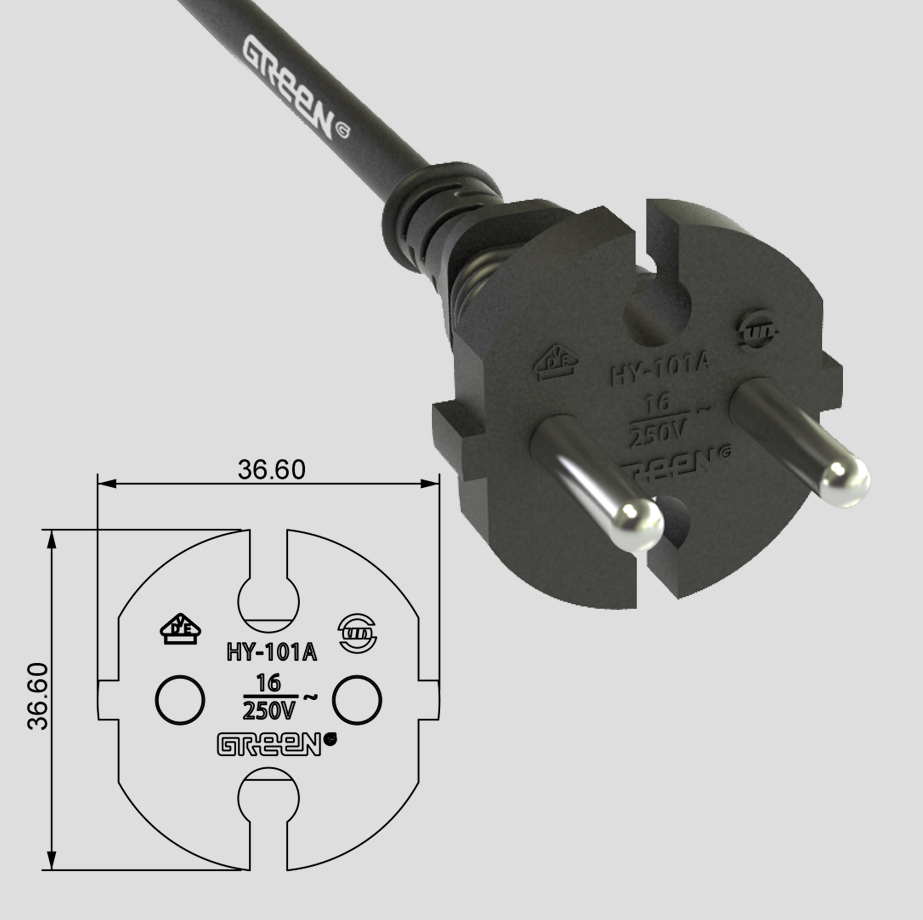

HY-101A
Approval Mark:
Model:
HY-101A
Complied Standards:
IEC 60884-1
Suitable Wire Specification:
H03VVH2-F 2×0.75 250V/16A H05VVH2-F 2×0.75 250V/16A
H03VV-F 2×0.75 250V/16A H05VV-F 2×0.75 250V/16A H05VV-F 2×1.0 250V/16A

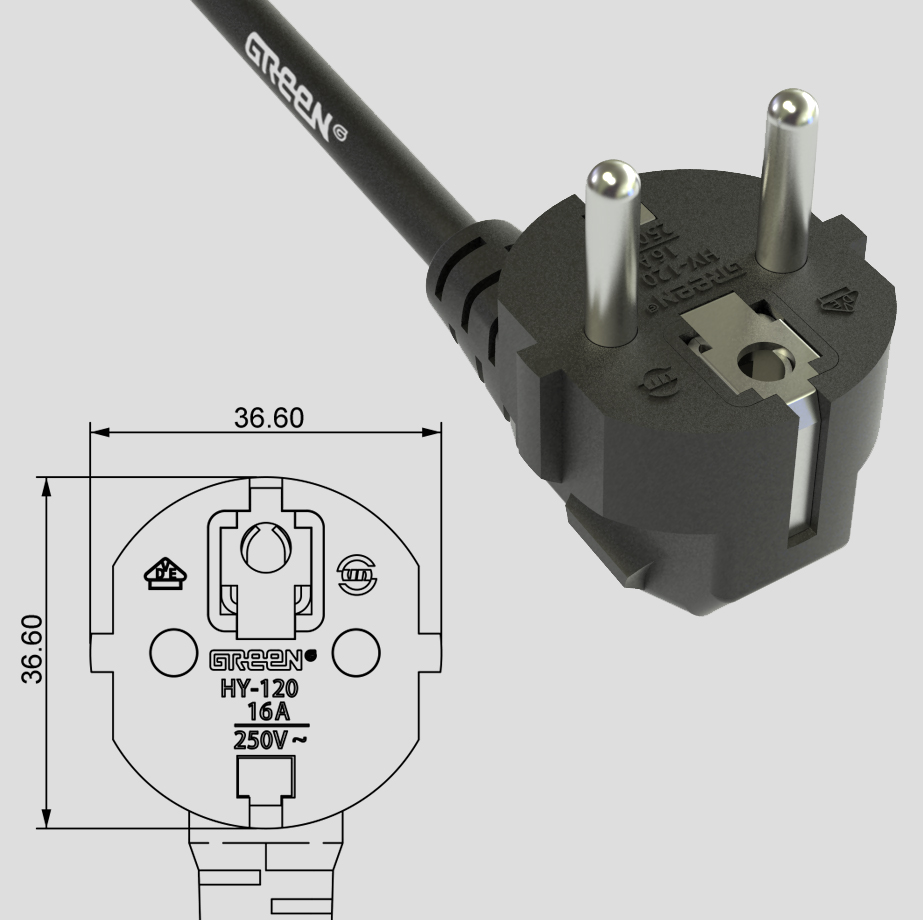

HY-120
Approval Mark:
Model:
HY-120
Complied Standards:
IEC 60884-1
Suitable Wire Specification:
H03VV-F 3×0.75 250V/16A H05VV-F 3×0.75 250V/16A H05VV-F 3×1.0 250V/16A

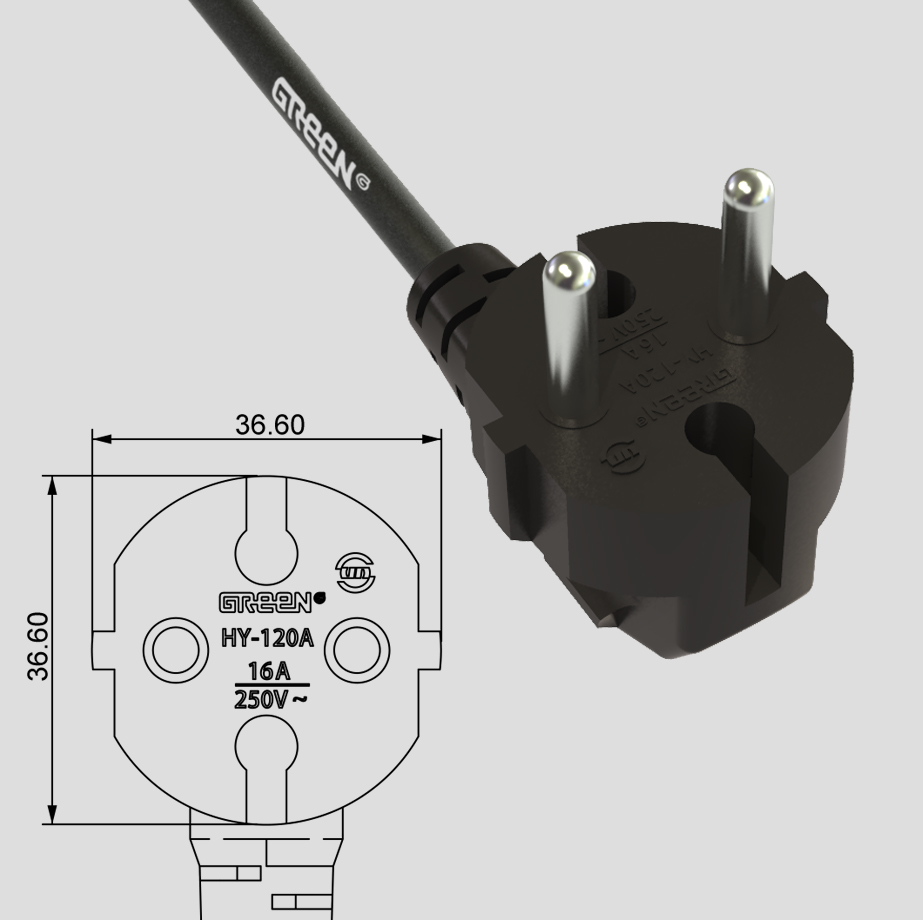

HY-120A
Approval Mark:
Model:
HY-120A
Complied Standards:
IEC 60884-1
Suitable Wire Specification:
H03VV-F 3×0.75 250V/16A H05VV-F 3×0.75 250V/16A H05VV-F 3×1.0 250V/16A

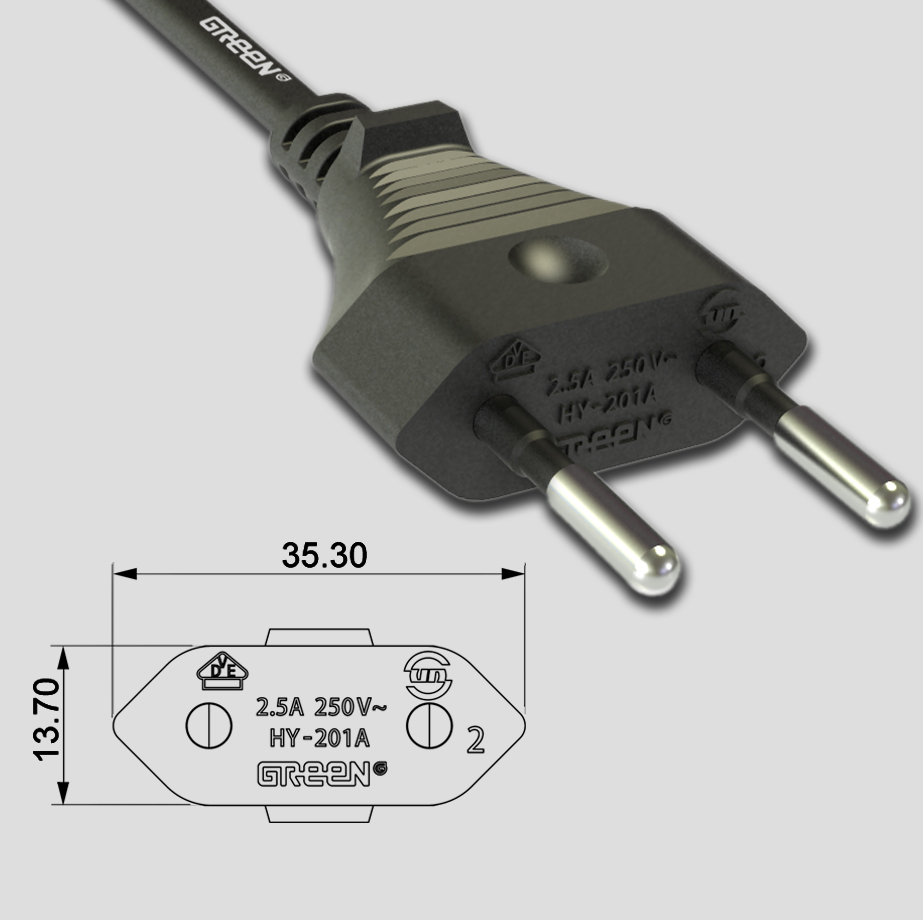

HY-201A
Approval Mark:
Model:
HY-201A
Complied Standards:
IEC 60884-1
Suitable Wire Specification:
H03VVH2-F 2×0.5 250V/2.5A H03VVH2-F 2×0.75 250V/2.5A H05VVH2-F 2×0.75 250V/2.5A

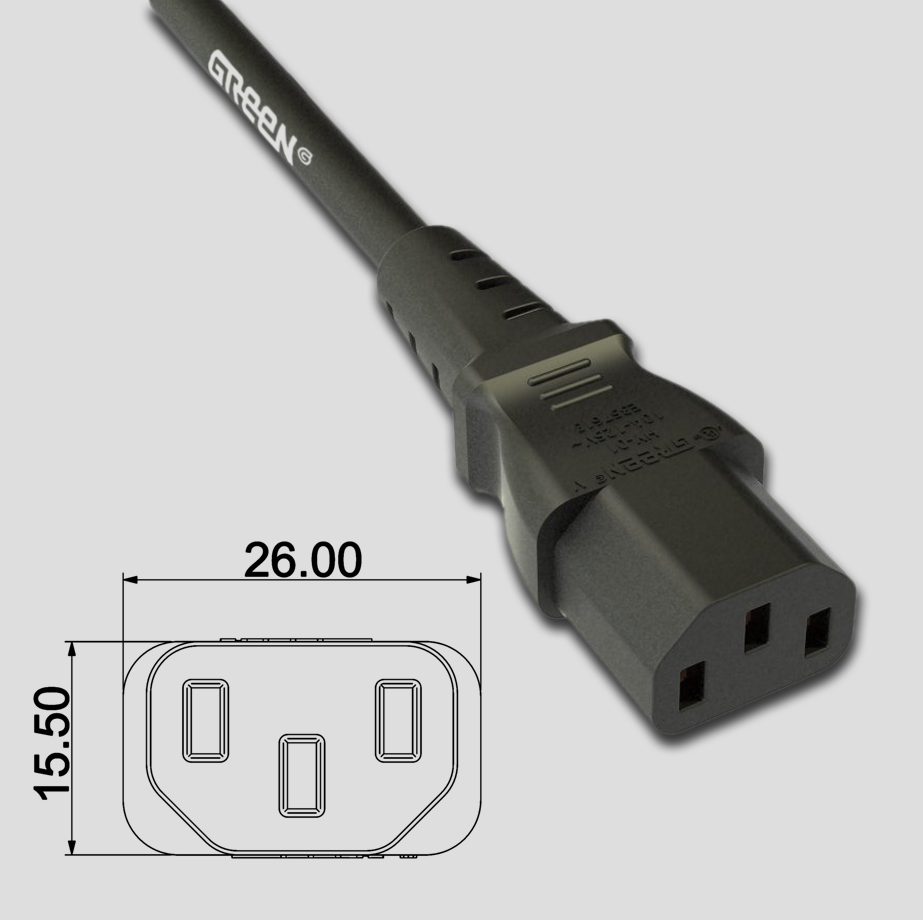

HY-01
Approval Mark:
Model:
HY-01
Complied Standards:
UL817
IEC 60320 C13
Suitable Wire Specification:
H05VV-F 3×0.75 250V/10A H05VV-F 3×1.0 250V/10A

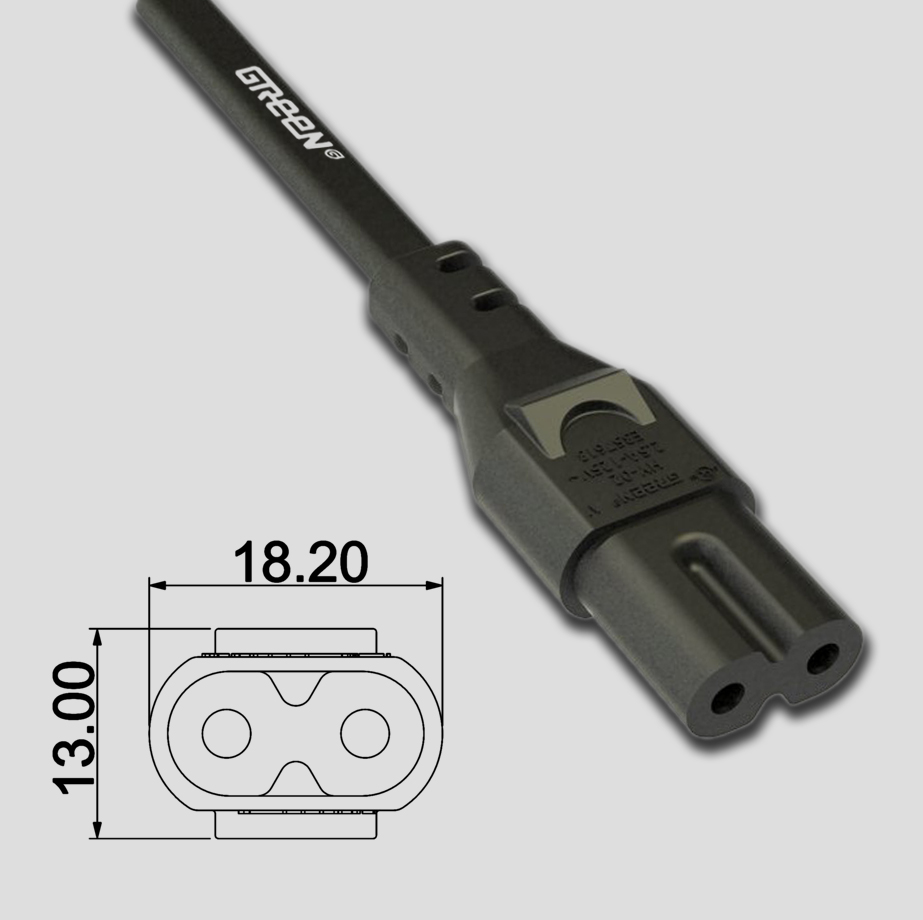

HY-02
Approval Mark:
Model:
HY-02
Complied Standards:
UL817
IEC 60320 C7
Suitable Wire Specification:
H03VVH2-F 2×0.5 250V/2.5A H03VVH2-F 2×0.75 250V/2.5A H05VVH2-F 2×0.75 250V/2.5A
