UL/cUL | Hook-Up Wires

UL/cUL Standard (America) | Automotive Cable Hook-Up Wires Multiple Cable Power Cable Power Plug

UL1007

Wire Type
UL1007 - Hook up, Insulated Wire
Application
For internal wiring of appliances.
Materials/Standard
Conductor : 32-16 AWG, solid or stranded. in compliance with UL758 Insulation : Vinyl (PVC) insulated.
Uniform thickness of wire to ensure easy stripping and cutting. Passed UL VW-1 flame test. Resistant to acids, oils, alkalis, moisture and fungus.
Temperature Rate: 80°

UL1015

Wire Type
UL1015 - Hook up, Insulated Wire
Application
For internal wiring of electronic and electrical equipment.
Materials/Standard
Conductor : Nos.30-2,000 MCM AWG, Solid or stranded, tinned copper. in compliance with UL758 Insulation : Vinyl (PVC) insulated.
Uniform thickness of wire to ensure easy stripping and cutting. Passed UL VW-1 flame test. Resistant to acids, oils, alkalis, moisture and fungus.
Temperature Rate: 80°, 90° or 105°

UL1061

Wire Type
UL1061 - Hook up, Insulated Wire
Application
For Internal Wiring in Electric Bookkeeping, Accounting,Time-Recording Machines, or Electronic Equipment, if within a chassis or protected from mechanical injury.
Materials/Standard
Conductor : 30-16 AWG,solid or stranded, tinned or bare copper. in compliance with UL758
Insulation : Semi-rigid Vinyl (PVC) insulated.
Uniform thickness of wire to ensure easy stripping and cutting. Passed UL VW-1 flame test.
Temperature Rate: 80°

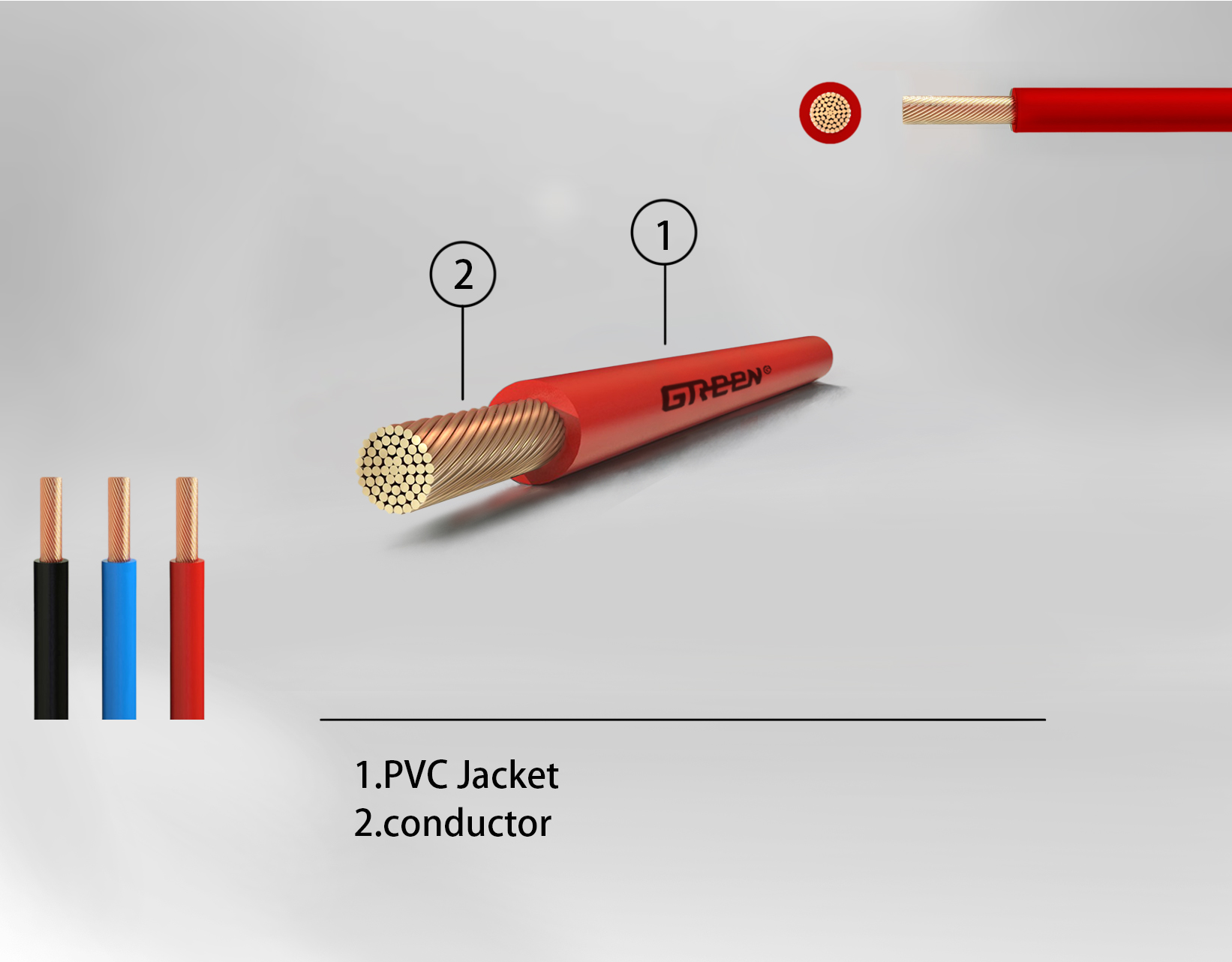

UL1195

Wire Type
UL1195 - Hook up, Insulated Wire
Application
For Internal Wiring in Electric Bookkeeping, Accounting, Time-Recording Machines,Electronic, Medical or Dental Equipment, if within a chassis or protected from mechanical injury.
Materials/Standard
Conductor : 30-14 AWG,solid or stranded, tinned or bare copper. in compliance with UL758
Insulation : Vinyl (PVC) insulated.
Uniform thickness of wire to ensure easy stripping and cutting. Passed UL VW-1 flame test.
Temperature Rate: 80°

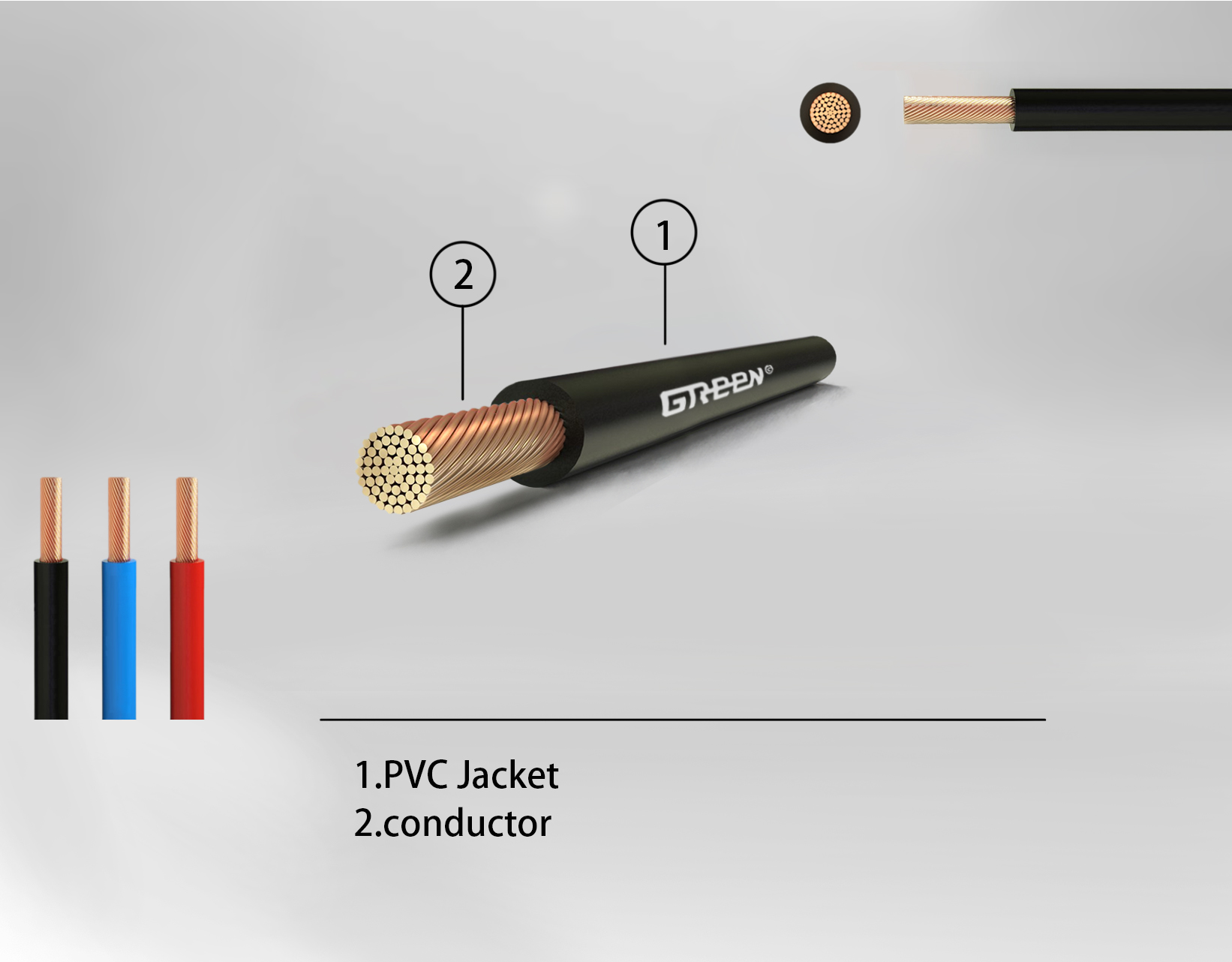

UL1208

Wire Type
UL1208 - Hook up, Insulated Wired
Application
Internal Wiring in Electric Bookkeeping, Accounting, or Time-Recording Machines.
Materials/Standard
Conductor : 30-16 AWG, solid or stranded, tinned or bare copper. in compliance with UL758
Insulation : Semi-rigid Vinyl (PVC) insulated.
Passed UL VW-1 flame test.
Temperature Rate: 80°

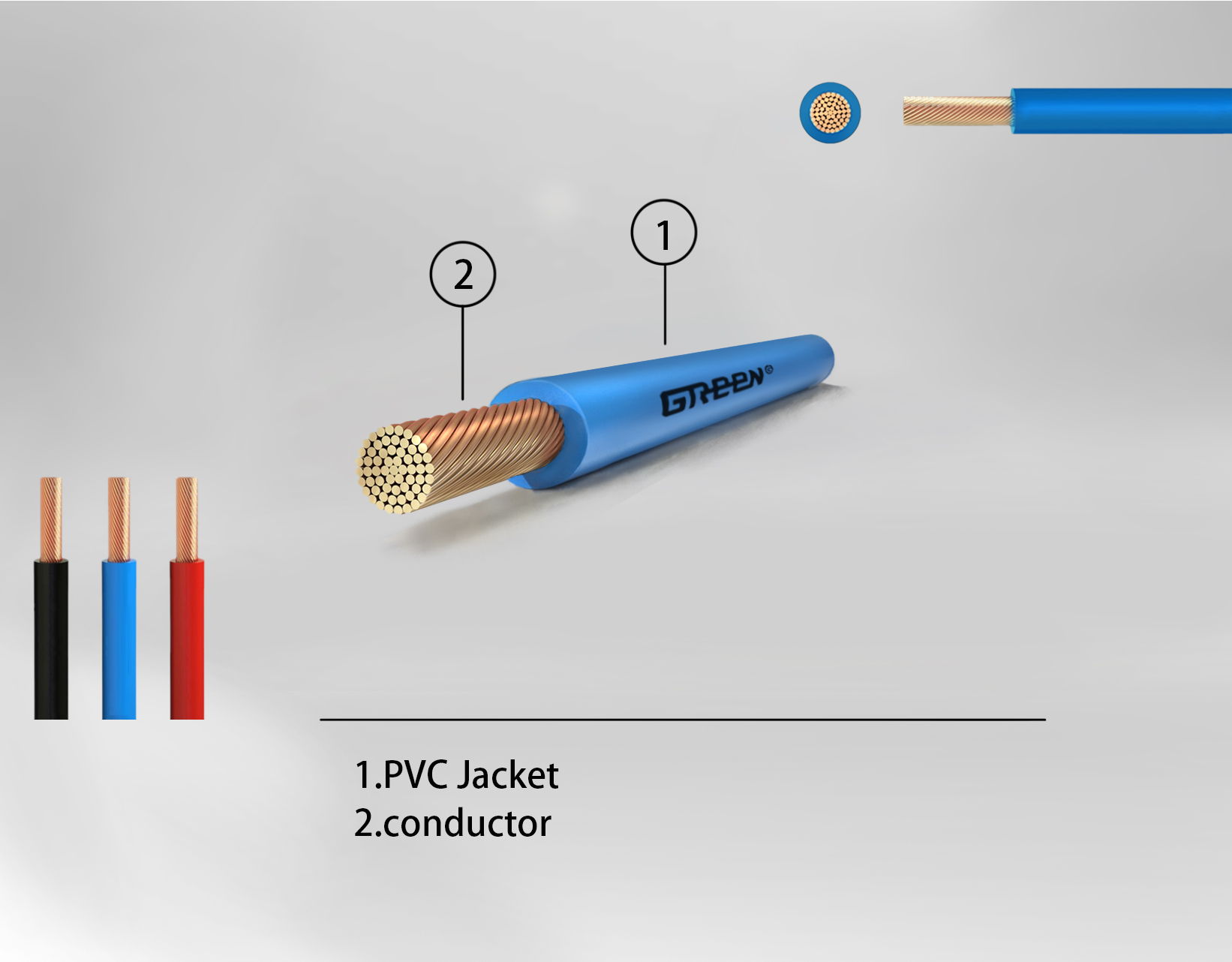

UL1571

Wire Type
UL1571 - Hook up, Insulated Wired
Application
For internal wiring of electronic and electrical equipment, and power adaptor for portable PC
Materials/Standard
Conductor : 30-18 AWG, solid or stranded, tinned or bare copper. in compliance with UL758
Insulation : Semi-rigid Vinyl (PVC) or Vinyl (PVC)insulated.
Passed UL VW-1 flame test.
Temperature Rate: 80°
