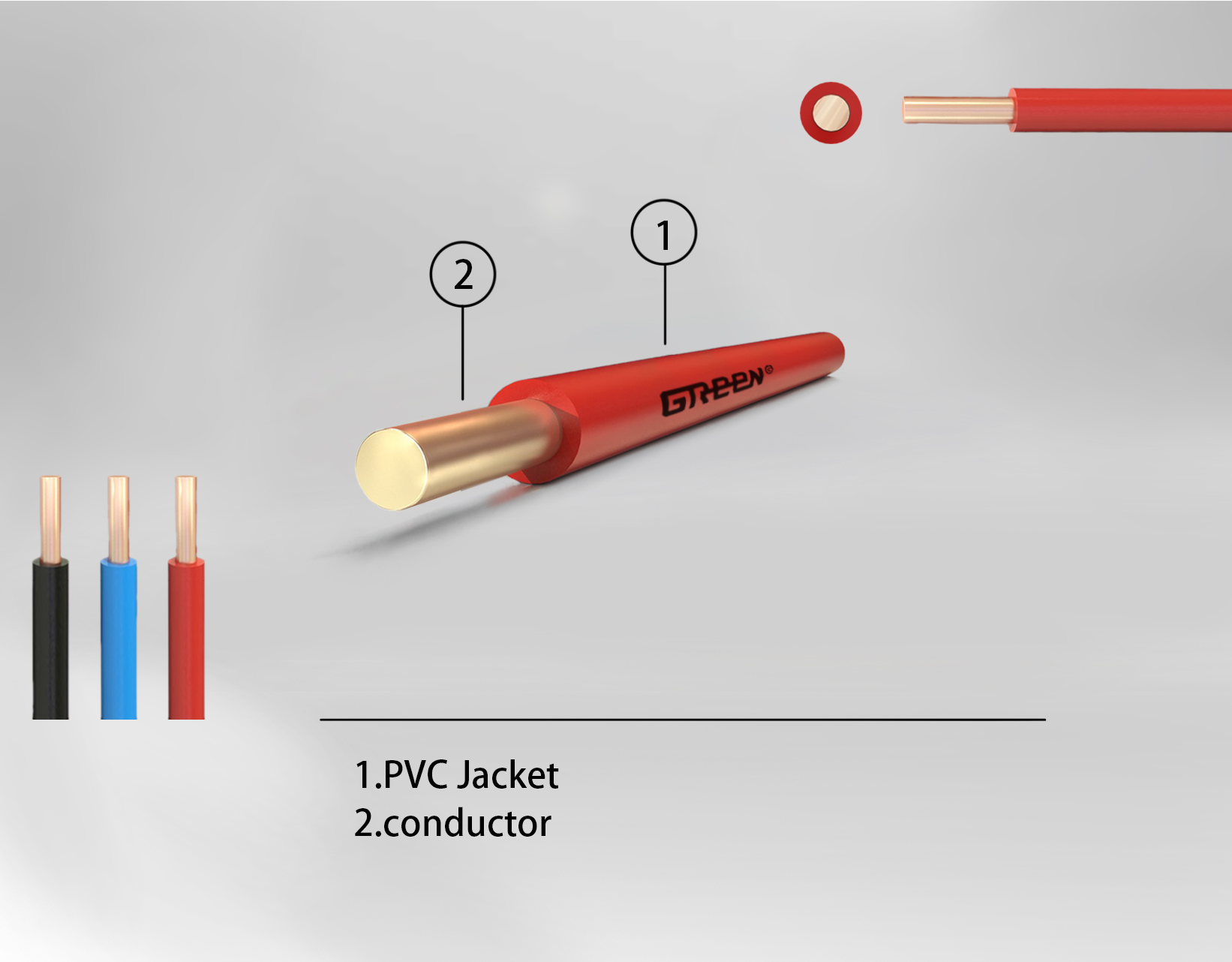

VC

Wire Type
VC Copper wire (solid), PVC Insulation
Application
Fixed protected installation inside appliances and in lighting fittings.
Suitable for installation in surface mounted or embedded conduits, only for signalling or control circuits.
Materials/Standard
Conductor: Solid annealed copper (Class 1). In compliance with TCVN 6610, IEC 227-3.
Insulation: Vinyl (PVC).
Uniform thickness of wire to ensure easy stripping and cutting.
Series of type: 0.5 ~ 6.0mm²
Temperature Rate: 70°
Voltage Rate: 300/500V and 450/750V

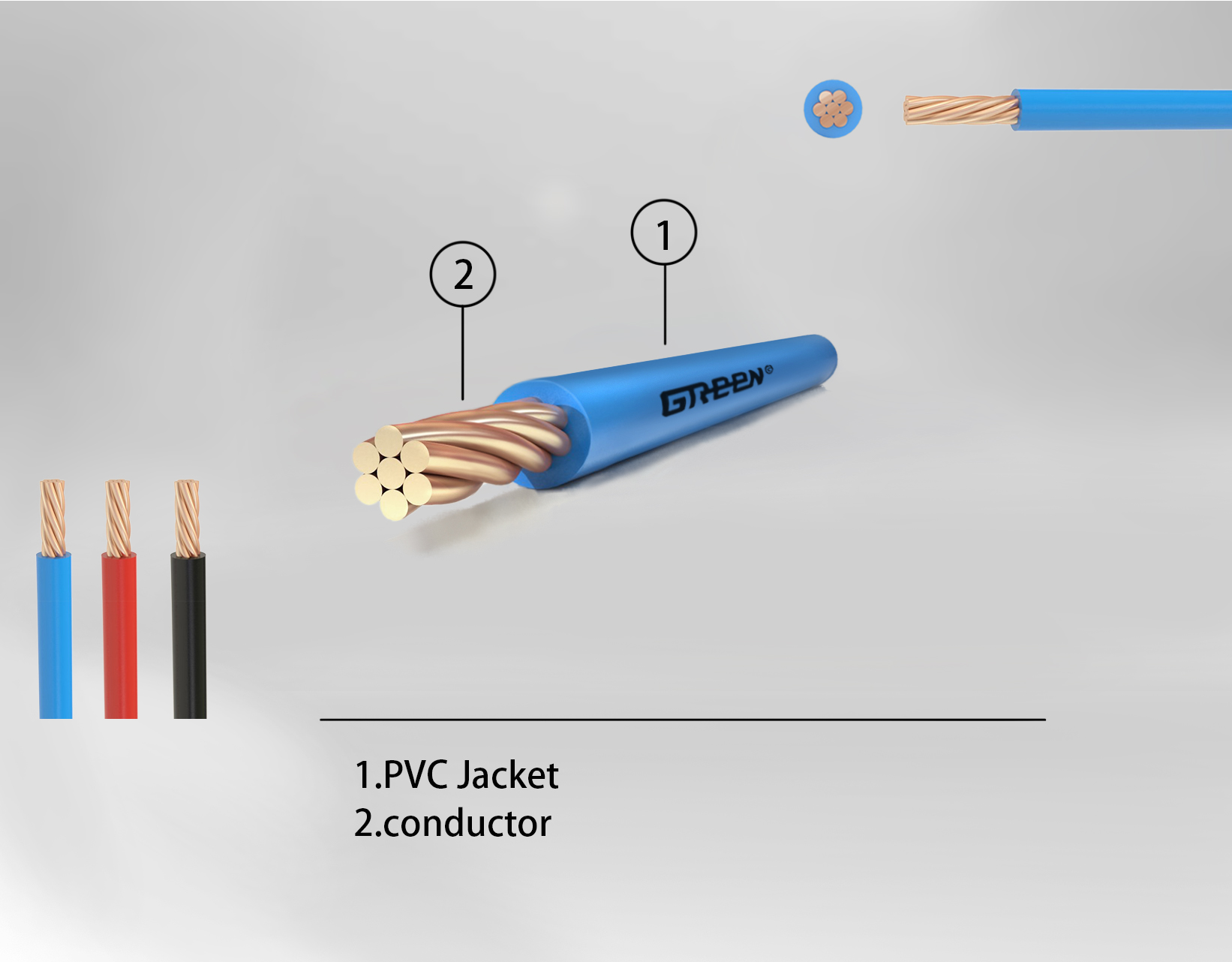

CV

Wire Type
CV Copper wire (stranded), PVC Insulation
Application
Fixed protected installation inside appliances and in lighting fittings.
Suitable for installation in surface mounted or embedded conduits, only for signalling or control circuits.
Materials/Standard
Conductor: Soft-annealed copper, concentric stranded (Class 2). In compliance with TCVN 6610, IEC 227-3.
Insulation: Vinyl (PVC).
Uniform thickness of wire to ensure easy stripping and cutting.
Series of type: 0.5 ~ 38mm²
Temperature Rate: 70°
Voltage Rate: 300/500V and 450/750V

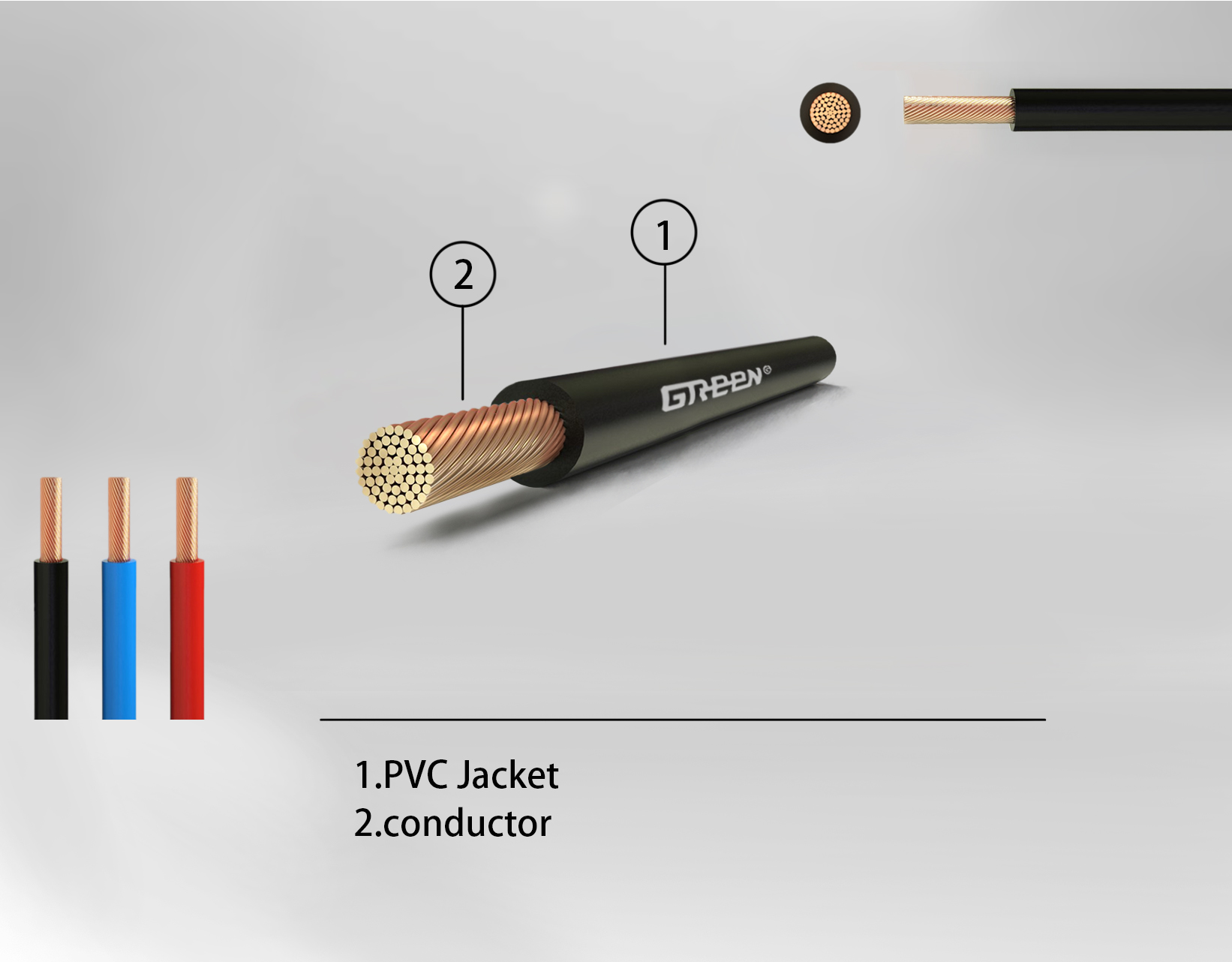

VCm

Wire Type
VCm Copper flexible wire, PVC insulation
Application
Fixed protected installation inside appliances and in lighting fittings.
Suitable for installation in surface mounted or embedded conduits, only for signalling or control circuits.
Materials/Standard
Conductor: Soft-annealed copper, concentric stranded (Class 5). In compliance with TCVN 6610, IEC 227-3.
Insulation: Vinyl (PVC).
Uniform thickness of wire to ensure easy stripping and cutting.
Series of type: 0.4 ~ 6.0mm²
Temperature Rate: 70°
Voltage Rate: 300/500V and 450/750V

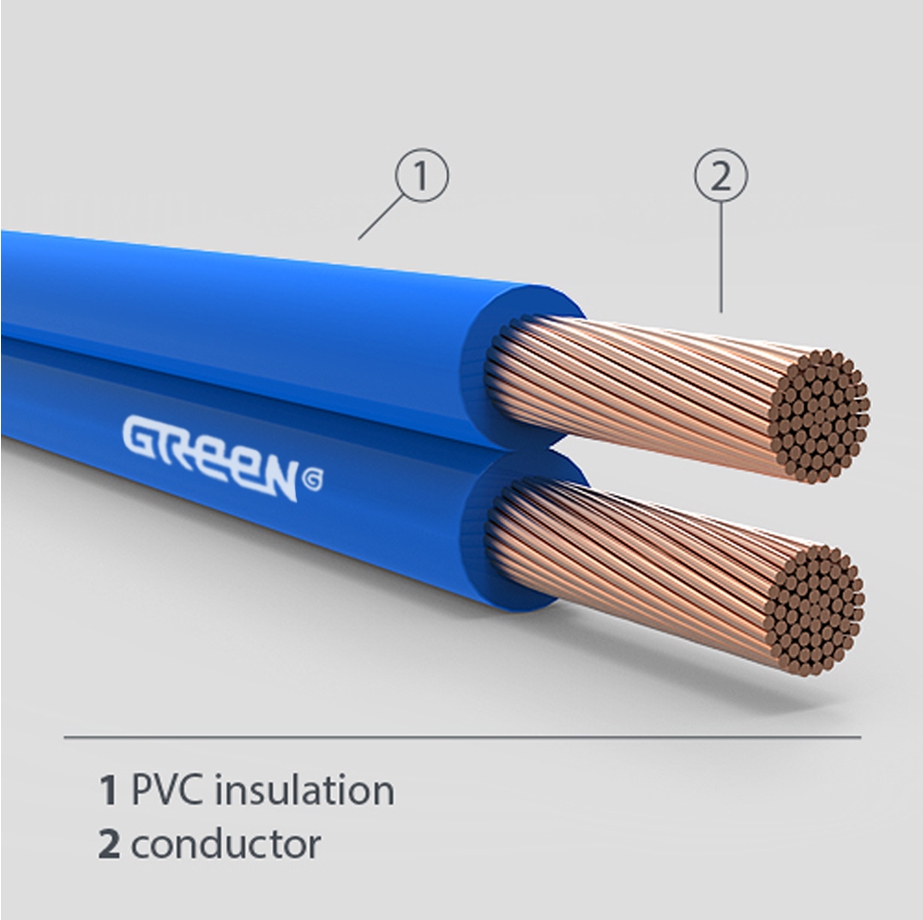

VCmd

Wire Type
VCmd Copper parallel flexible wire, PVC Insulation
Application
In domestic premises, kitchens, offices. In high ambient temperatures for household appliances, including in damp premises. For medium duties.
Materials/Standard
Conductor: Soft-annealed copper, concentric stranded (Class 5). In compliance with TCVN 6610-5, IEC 227-3.
Insulation: Vinyl (PVC).
Uniform thickness of wire to ensure easy stripping and cutting.
Series of type: 0.5 ~ 6.0mm²
Temperature Rate: 70°
Voltage Rate: 300/500V and 450/750V

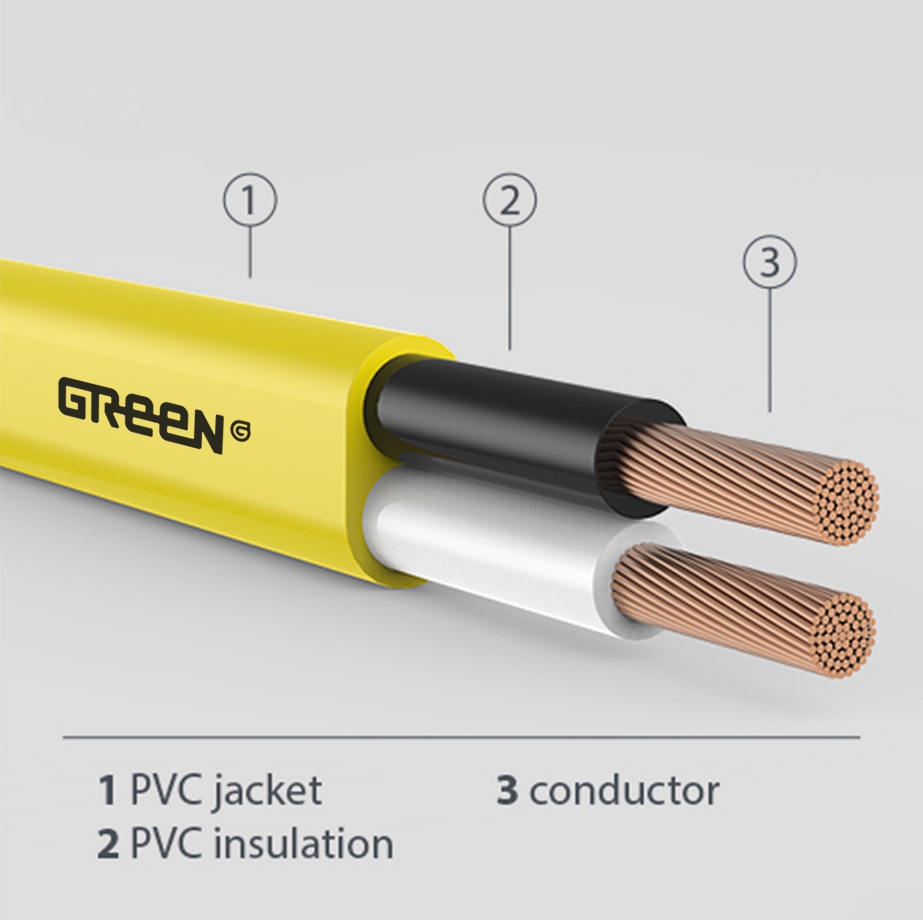

VCmo

Wire Type
VCmo flat flexible wire, 2 copper cores, PVC Insulation, PVC sheath
Application
In domestic premises, kitchens, offices. In high ambient temperatures for household appliances, including in damp premises. For medium duties.
Materials/Standard
Conductor: Soft-annealed copper, concentric stranded (Class 5). In compliance with TCVN 6610, IEC 227-5.
Insulation: Vinyl (PVC).
Uniform thickness of wire to ensure easy stripping and cutting.
Series of type: 0.4 ~ 6.0mm²
Temperature Rate: 70°
Voltage Rate: 300/500V
