UL/cUL | Automotive Cable

UL/cUL Standard (America) | Automotive Cable Hook-Up Wires Multiple Cable Power Cable Power Plug

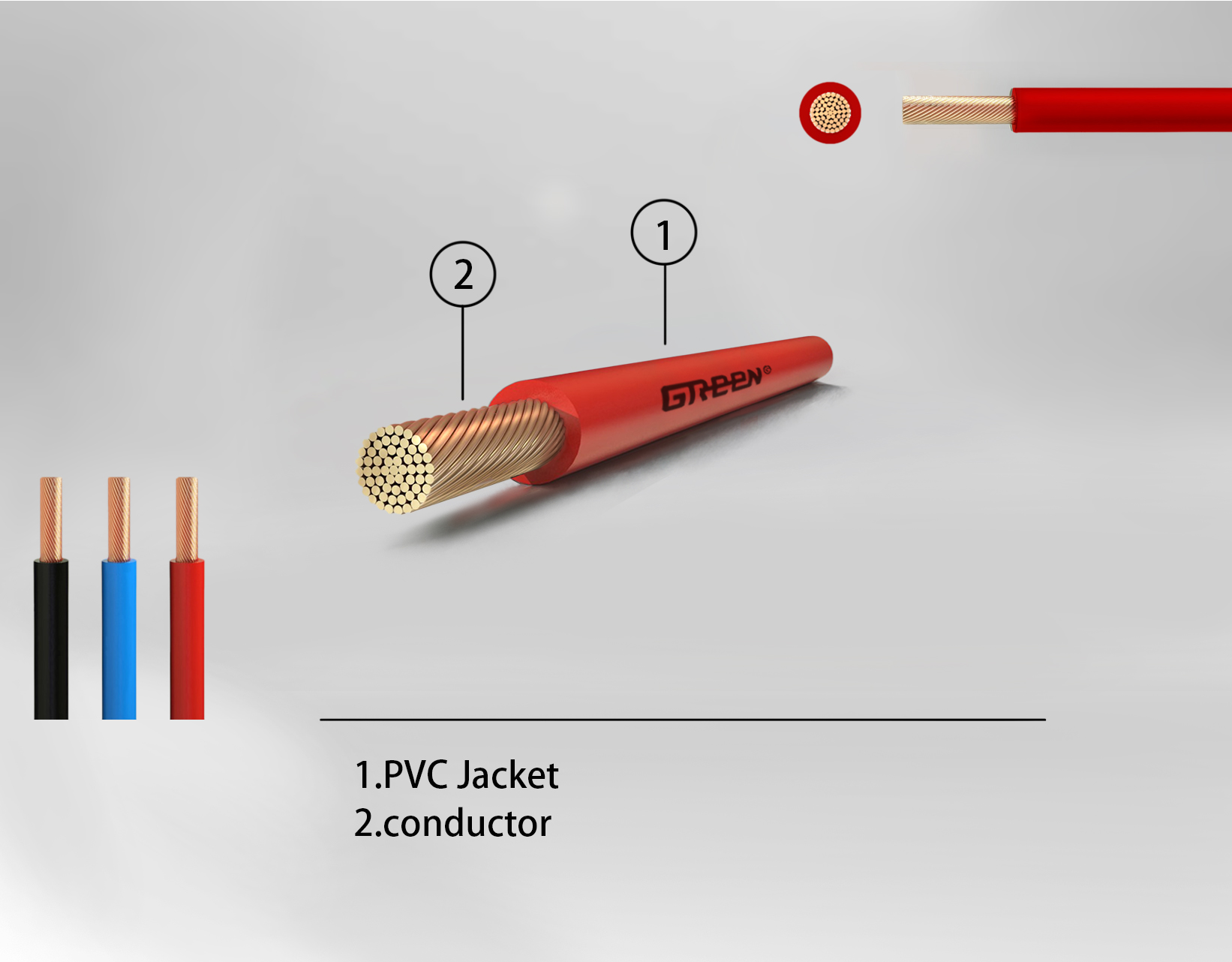

GPT - SAE

Wire Type
GPT SAE General Purpose, Thermoplastic Insulated
Application
Insulated low-tension wires for automobiles, motorcycles and other motor vehicles. SAE J1128 compliant.
Materials/Standard
Conductor : Soft-annealed copper wires in compliance with ASTM B 3.
Insulation : Vinyl (PVC) insulated. In compliance with SAE J1128 and RoHS Directive.
Temperature Rate: -40° ~ +85°

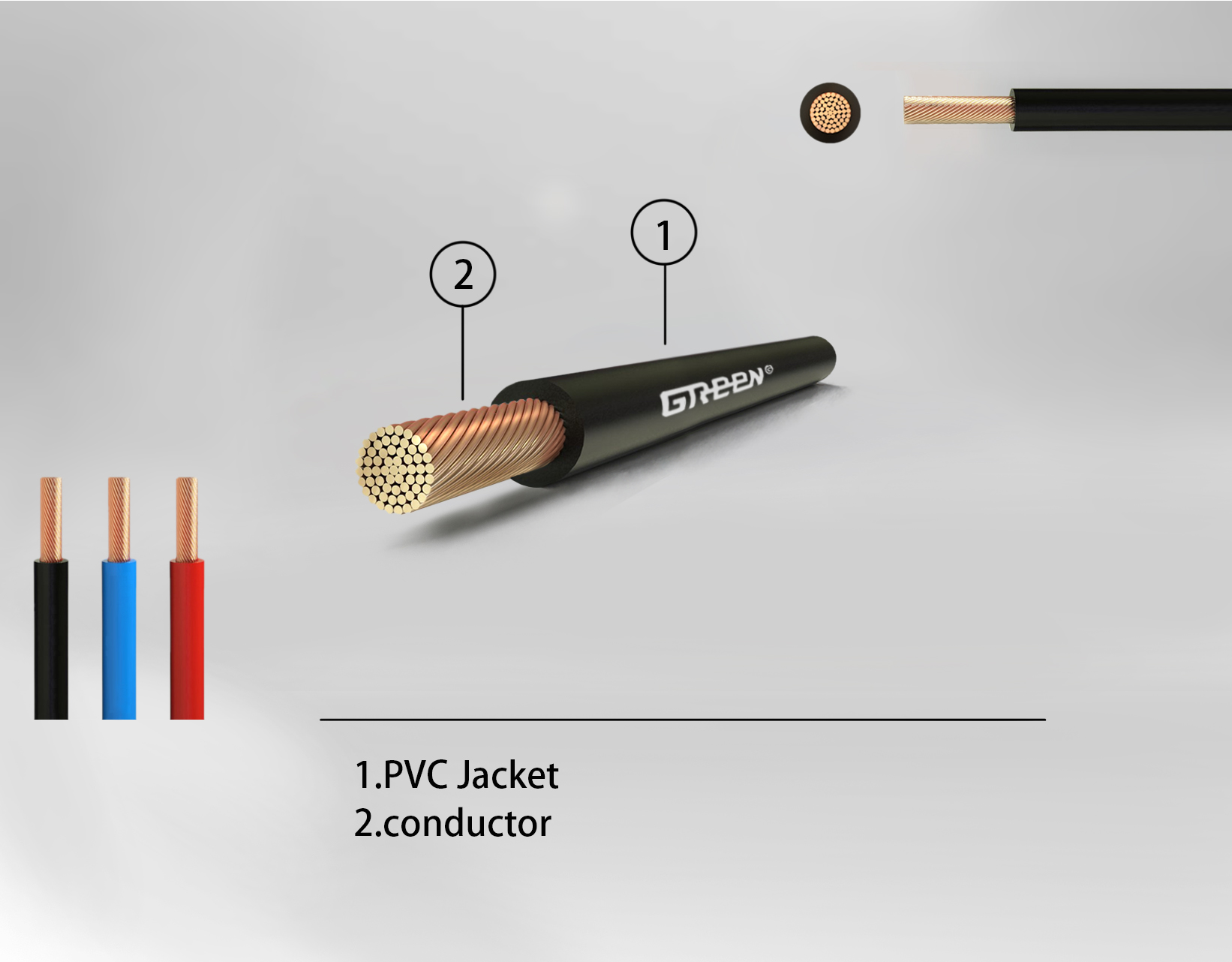

TWP - SAE

Wire Type
TWP SAE Thin Wall, Thermoplastic Insulated
Application
Insulated low-tension wires with thin wall insulation for automobiles, motorcycles and other motor vehicles. SAE J1128 compliant.
Materials/Standard
Conductor : Soft-annealed copper wires in compliance with ASTM B 3.
Insulation : Vinyl (PVC) insulated. In compliance with SAE J1128 and RoHS Directive.
Temperature Rate: -40° ~ +85°

HDT - SAE

Wire Type
HDT SAE Heavy Duty, Thermoplastic Insulated
Application
Insulated low-tension wires with heavy wall insulation for automobiles, motorcycles and other motor vehicles. SAE J1128 compliant.
Materials/Standard
Conductor : Soft-annealed copper wires in compliance with ASTM B 3.
Insulation : Vinyl (PVC) insulated. In compliance with SAE J1128 and RoHS Directive.
Temperature Rate: -40° ~ +85°

GXL - SAE

Wire Type
GXL SAE General Purpose, Crosslinked Polyolefin Insulated
Application
Crosslinked PE insulated and higher heat-resistant low-tension wires for automobiles, motorcycles and other motor vehicles.
Materials/Standard
Conductor : Soft-annealed copper wires in compliance with ASTM B 3.
Insulation : Crosslinked PE (Polyethylene) insulated. In compliance with SAE J1128 and RoHS Directive.
Temperature Rate: -40° ~ +125°

SXL - SAE

Wire Type
SXL SAE Special Purpose, Crosslinked polyolefin Insulated
Application
Crosslinked PE insulated and higher heat-resistant low-tension wires with thick wall insulation for automobiles, motorcycles and other motor vehicles. SAE J1128 compliant.
Materials/Standard
Conductor : Soft-annealed copper wires in compliance with ASTM B 3
Insulation : Crosslinked PE insulated. In compliance with SAE J1128 and RoHS Directive.
Temperature Rate: -40° ~ +125°

TXL - SAE

Wire Type
TXL SAE Thin Wall, Crosslinked Polyolefin Insulated
Application
Crosslinked PE insulated and higher heat-resistant low-tension wires with thin wall insulation for automobiles, motorcycles and other motor vehicles. SAE J1128 compliant.
Materials/Standard
Conductor : Soft-annealed copper wires in compliance with ASTM B 3
Insulation : Crosslinked PE insulated. In compliance with SAE J1128 and RoHS Directive.
Temperature Rate: -40° ~ +125°
